Brake Pads, Front: Removal

NOTE:

Removal steps in this procedure may contain installation details.

For information about safety information, brake system, see SAFETY INFORMATION BRAKE SYSTEM

Remove the wheel, see WHEELS

Fig 1: Removing Anti-Rattle spring

Courtesy of VOLVO CARS CORPORATION

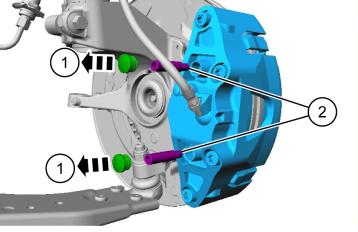

Fig 2: Removing Caliper Slide Pins

Courtesy of VOLVO CARS CORPORATION

WARNING:

The brake caliper housing Torx bolts must not be removed.

WARNING:

Make sure that no load is placed on the brake hose.

Torque: Slide rail front brake caliper

28 Nm

Fig 3: Fitting New Brake Pads

Courtesy of VOLVO CARS CORPORATION
