Brake Disc Front, Calibrating: Preparation

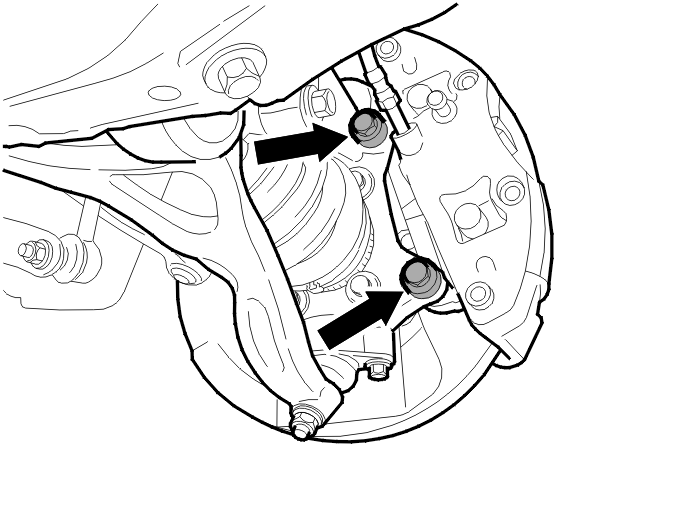

Fig 1: Locating Brake Caliper Mounting Screws

Courtesy of VOLVO CARS CORPORATION

Remove:

• the wheel
• the mounting screws for the brake calliper holder.

Hang the brake calliper from the spring using a wire.
