Removing The Sun Roof
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2011 Volvo XC90, 2010 Volvo XC90, 2009 Volvo XC90, 2008 Volvo XC90, and 2007 Volvo XC90. However, it is still accessible from the selected car via links, so may be relevant.
Remove:
- the headlining. See HEADLINING, REPLACING
- the connector for the sun roof unit
- the front and rear drain hoses.

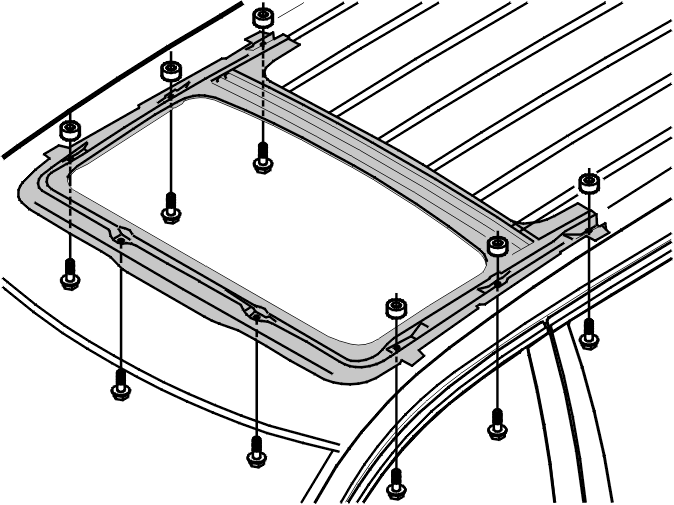

- the 8 screws, and 8 spacers, for the gutter frame.

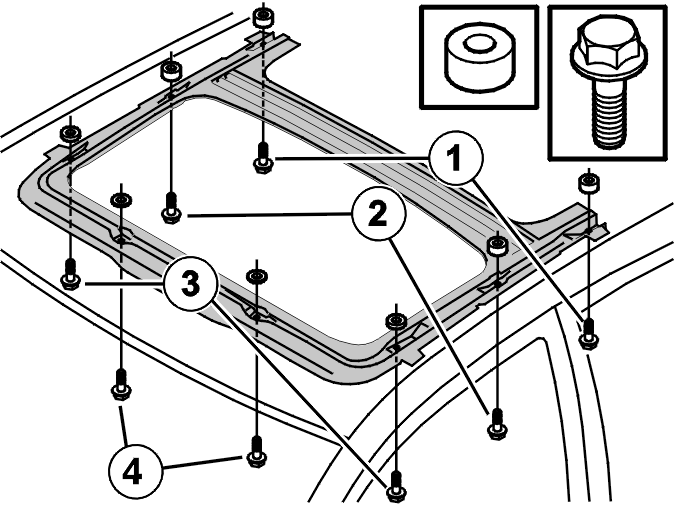

NOTE:
Note the position of spacers and screws and the various thicknesses and lengths.
Lift the sun roof down and out.
