Removing The Exterior Handle From The Upper Tailgate

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2011 Volvo XC90, 2010 Volvo XC90, 2009 Volvo XC90, 2008 Volvo XC90, and 2007 Volvo XC90. However, it is still accessible from the selected car via links, so may be relevant.

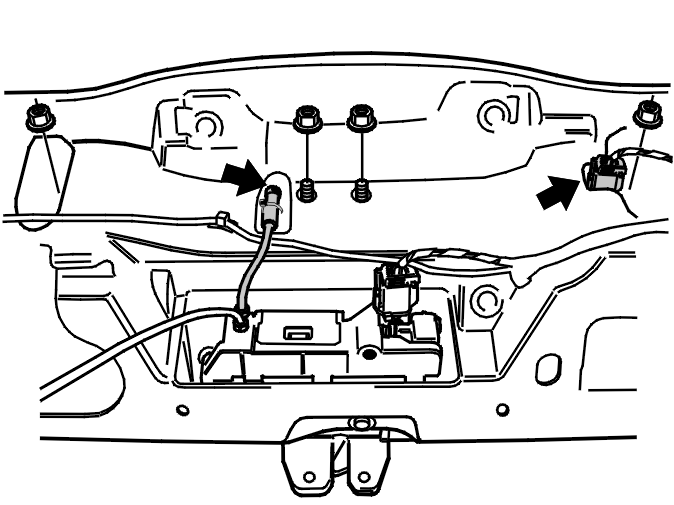

Fig 1: Identifying Upper Tailgate Handle Mechanical Cable

Courtesy of VOLVO CARS CORPORATION

Remove:

the wiper arm. See TAILGATE WIPER ARM / BLADE, REPLACING
the panel. See PANEL TAILGATE UPPER, REPLACING
the 3 screws for the wiper motor
the wiper motor
the mechanical cable for the outer opening handle
the 4 nuts
the connector.

Remove the outer handle.
