Removing The Inner Handle From The Lower Tailgate

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2011 Volvo XC90, 2010 Volvo XC90, 2009 Volvo XC90, 2008 Volvo XC90, and 2007 Volvo XC90. However, it is still accessible from the selected car via links, so may be relevant.

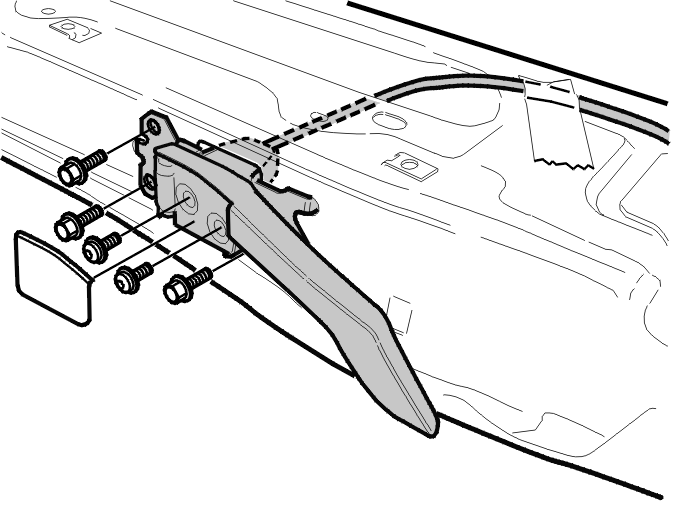

Fig 1: Identifying Tailgate Handle Screws

Courtesy of VOLVO CARS CORPORATION

Remove the lock mechanism. See LOCK MECHANISM TAILGATE LOWER, REPLACING .

Unhook the cable from the lock.

Remove the cable from the clip in the tailgate.

Remove the 3 screws.

Pull the opening handle and cables from the tailgate.

Remove:

the cover on the opening handle
the 2 screws.

Unhook the cables from the opening handle.

Release the catches.

Remove the cable from the bracket.
