Removing The Lock Unit For The Fuel Tank Filler Cover

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2011 Volvo XC90, 2010 Volvo XC90, 2009 Volvo XC90, 2008 Volvo XC90, and 2007 Volvo XC90. However, it is still accessible from the selected car via links, so may be relevant.

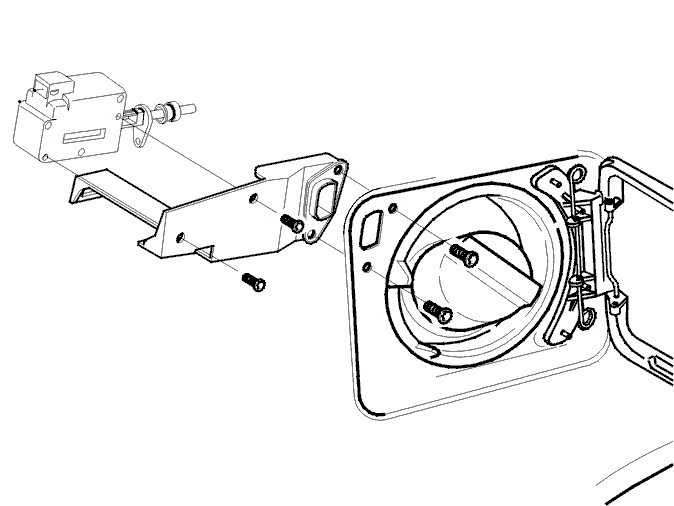

Fig 1: Fuel Tank Filler Cover And Screws

Courtesy of VOLVO CARS CORPORATION

Fold up the cargo floor hatch.

Remove:

the outer load floor
the hatch (the rear section of the side panel in the cargo compartment).

Fold the insulation out of the way.

the two screws holding the bracket in the body
the connector
two screws holding the lock unit on the bracket.
