Styling Pack, Skid Plate And Exhaust System: Notes
NOTE:
On cars equipped with a towbar, installation kit, Towbar, installation kit, XC90 R-design containing two exhaust mountings must be obtained.
- Turn the ignition switch to position 0.
NOTE:
Wait at least three minutes before unplugging the connectors or removing other electrical equipment.
Applies to cars with two rows of seats

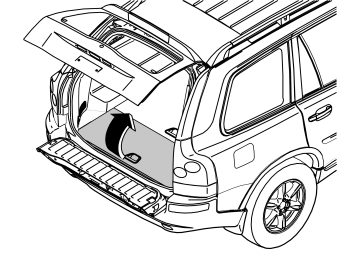

- Fold up the middle, rear floor hatch. Unhook the straps.
- Detach the storage box underneath and lift it out.
- Fold back the floor hatch. Pull the floor hatch backwards and lift it out.
Applies to cars with three rows of seats
- Open the middle rear floor hatch.
- Unhook the two cords at the front edge/underneath and lift out.
Applies to all models
- Remove the tool box and equipment at the side of the battery.

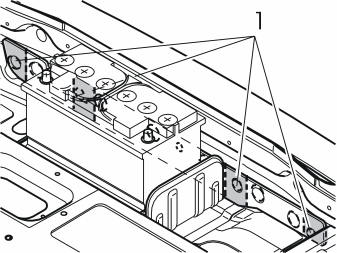

- Remove the pre-punched pieces (1) from the insulation panel in the rear crossmember by cutting them off at the markings.
- Remove the four sleeve nuts holding the bumper in place. They are in the holes under the insulation panel. Lift them out and remove them using a magnet
