Applies To Cars With Rear Parking Assistance

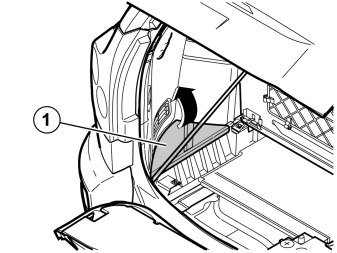

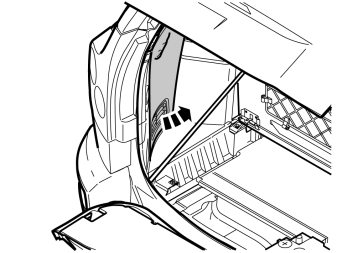

Fig 1: Removing The Floor Hatch, Left

Courtesy of VOLVO CARS CORPORATION

• Remove the floor hatch (1) on the left-hand side.

Fig 2: Removing The Side Panel, Left

Courtesy of VOLVO CARS CORPORATION

• Remove the side panel on the left-hand side.

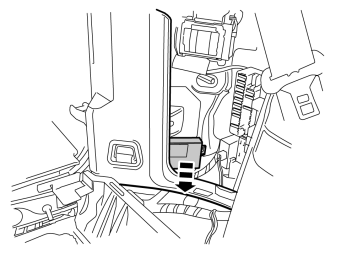

Fig 3: Removing The Control Module

Courtesy of VOLVO CARS CORPORATION

• Detach the control module, it is secured by Velcro.
• Remove the connector for the cable to the sensors.

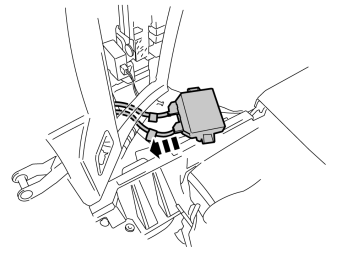

Fig 4: Relocating the Control Module

Courtesy of VOLVO CARS CORPORATION

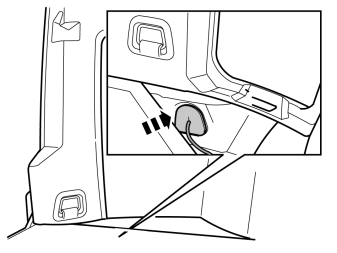

Fig 5: Identifying Seal With Cable

Courtesy of VOLVO CARS CORPORATION

• Press the foam rubber seal with cable into the hole in the bodywork.
