End Pipes

Fig 1: Cleaning End Pipes.

Courtesy of VOLVO CARS CORPORATION

Fig 2: Verifying No Dirt

Courtesy of VOLVO CARS CORPORATION

Ensure that the marked areas around the pipes, where the clamp for the end pipes is to be tightened, is clean.

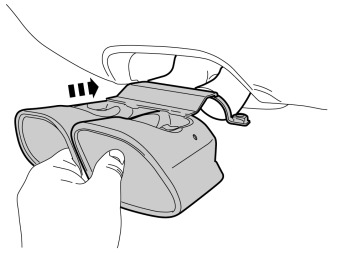

Fig 3: Installing End Pipe

Courtesy of VOLVO CARS CORPORATION

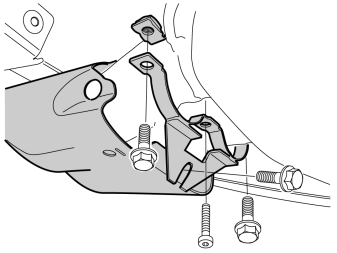

Fig 4: Tightening the Clamps

Courtesy of VOLVO CARS CORPORATION

Install the clamp from the kit, take the screws and loosely tighten the end pipes.
Adjust the clamp so that it is properly secured in the recesses in the silencer pipes.
Secure the end pipes. Tighten the screws to 24 Nm (18 lbf. ft.) .
