Wheel Hub Front, Checking [2009-2017]: Check

Remove the front brake disc FRONT BRAKE DISC

GLL172597Courtesy of VOLVO CARS CORPORATION

Special Tool: 999 5418

GLL172784Courtesy of VOLVO CARS CORPORATION

Special Tool: 999 5420

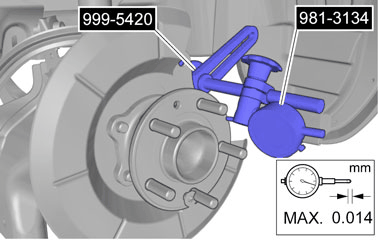

GLL1032511Courtesy of VOLVO CARS CORPORATION

Note the dial indicator gauge reading.

Special Tool: 999 5420 Special Tool: 981 3134

NOTE:

This step is only necessary when installing a new component.

Replace wheel bearing front WHEEL BEARING FRONT

Perform brake disc front, checking BRAKE DISC FRONT, CHECKING
