Remove The Brake Hose

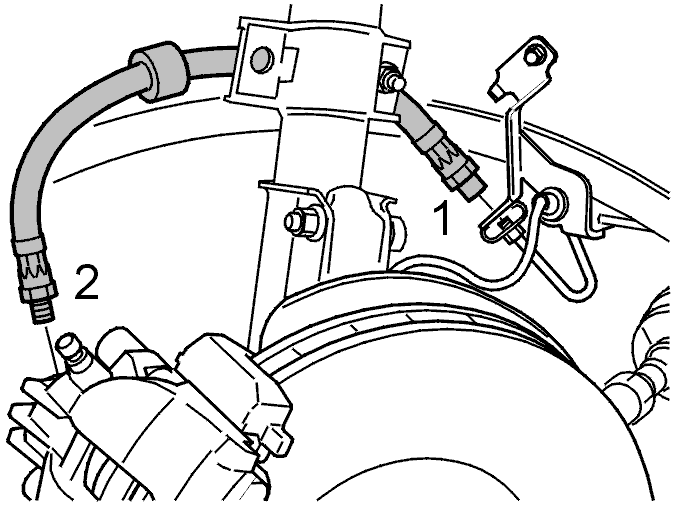

Fig 1: Brake Pipe And Brake Caliper Hoses

GLL104466

Courtesy of VOLVO CARS CORPORATION

Remove:

the brake hose from the brake pipe (1)
the brake hose from the brake caliper (2).
