Installing The Right Rear Brake Pipe

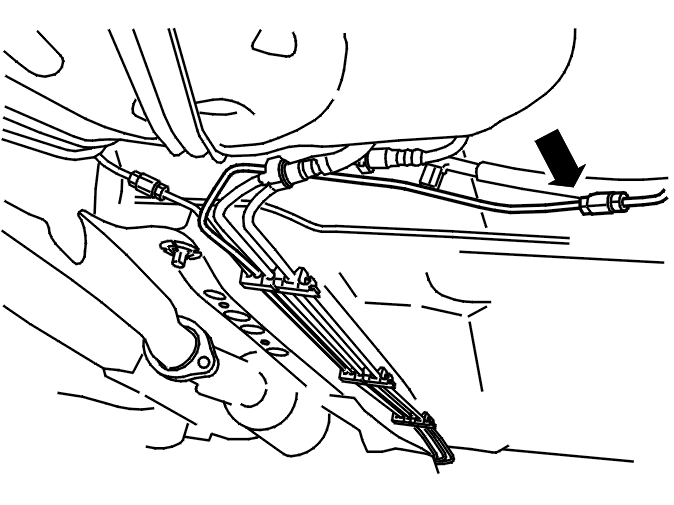

Fig 1: Identifying Brake Pipe And Clips

Courtesy of VOLVO CARS CORPORATION

Install the brake pipe in the front-rear brake pipe. Tighten. See TIGHTENING TORQUE .

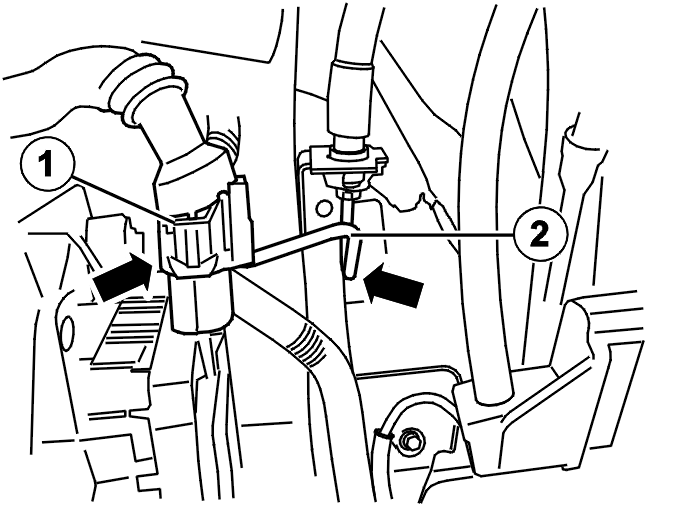

Fig 2: Identifying Brake Pipe And Connector

Courtesy of VOLVO CARS CORPORATION

Install:

• the brake pipe in the brake hose (2). Tighten. See TIGHTENING TORQUE
• the connector (1)
• the brake pipe in the clips.
