Vacuum Pump, Brake Booster

NOTE:

Removal steps in this procedure may contain installation details.

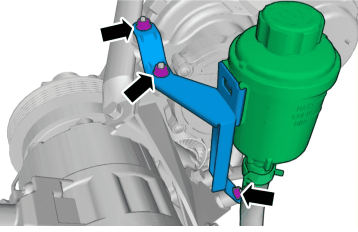

Fig 1: Identifying Bracket and Fasteners
GLL156496Courtesy of VOLVO CARS CORPORATION

M6. See TIGHTENING TORQUE

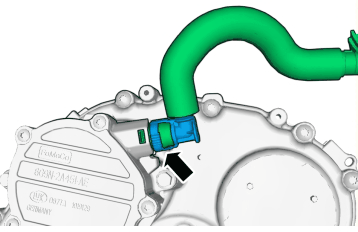

Fig 2: View Of Quick Release Connector
GLL156513Courtesy of VOLVO CARS CORPORATION

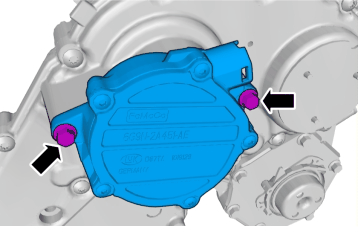

Fig 3: Locating Vacuum Pump Bolts
GLL156514Courtesy of VOLVO CARS CORPORATION

M7. See TIGHTENING TORQUE

To install, reverse the removal procedure
