Power Brake Booster, Replacing: Preparation

Fig 1: Locating Connectors

Courtesy of VOLVO CARS CORPORATION

Remove the master cylinder. See MASTER CYLINDER, REPLACING .

Disconnect the connectors from the cable duct.

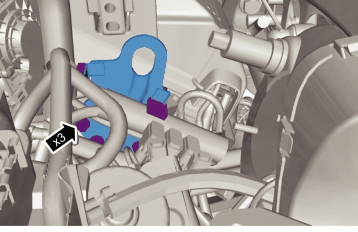

Fig 2: Identifying Lifting Eye And Bolts

Courtesy of VOLVO CARS CORPORATION

Remove:

• lifting eye
• cable harness.

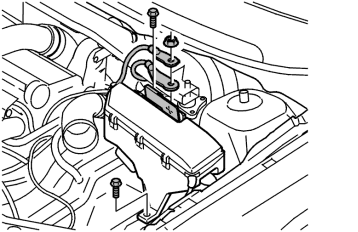

Fig 3: Identifying Supply Lines And Bolts

Courtesy of VOLVO CARS CORPORATION

Remove:

• nut supply lines
• the two supply lines
• the 2 x screws in the mounting.
