Removing Soundproofing Panels
Removing Soundproofing Panels

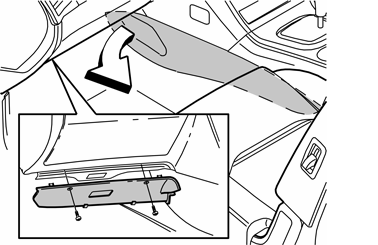

Fig 1: Identifying Center Console Panel And Soundproofing Panel
Courtesy of VOLVO CARS CORPORATION
Remove:
the screws (x 2)
soundproofing panel.
Courtesy of VOLVO CARS CORPORATION
