Power Brake Booster, Replacing: Preparation

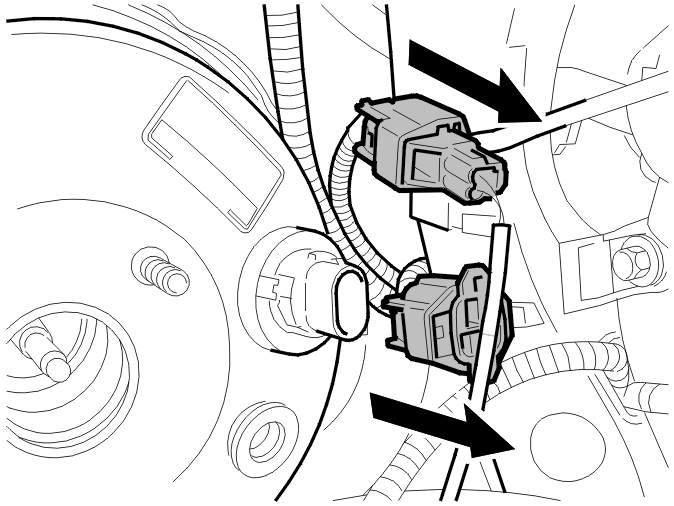

Fig 1: Locating Connectors
GLL108140Courtesy of VOLVO CARS CORPORATION

Remove the master cylinder. See MASTER CYLINDER, REPLACING .

Disconnect the connectors from the cable duct.
