Removing The Brake Pipe

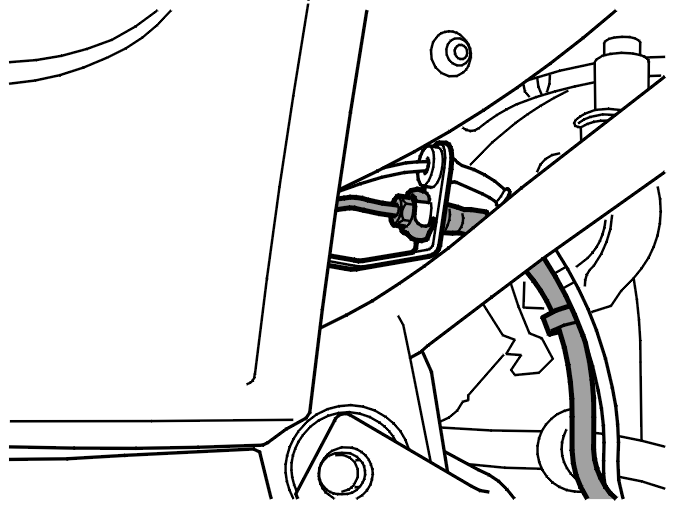

Fig 1: Identifying Brake Pipe

Courtesy of VOLVO CARS CORPORATION

Separate the brake pipe and the brake hose at the bracket.

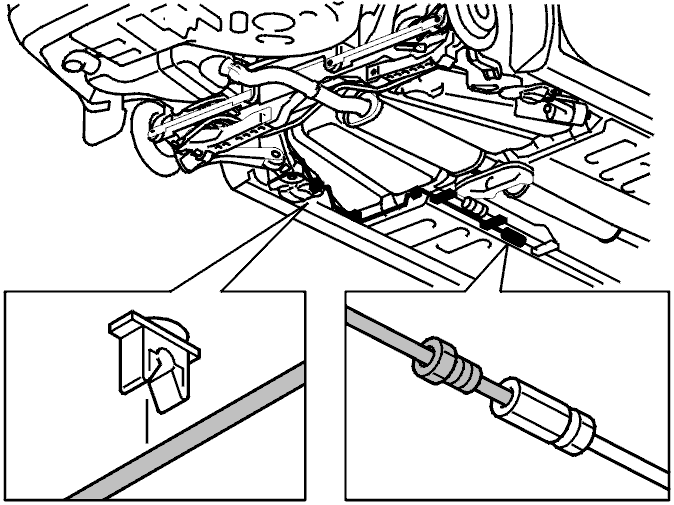

Fig 2: Brake Pipe Joint And Clips

Courtesy of VOLVO CARS CORPORATION

Separate the brake pipe at the joint nipple under the car.

Remove the brake pipe from its clips.

Remove the brake pipe.
