Removing The Brake Pipe

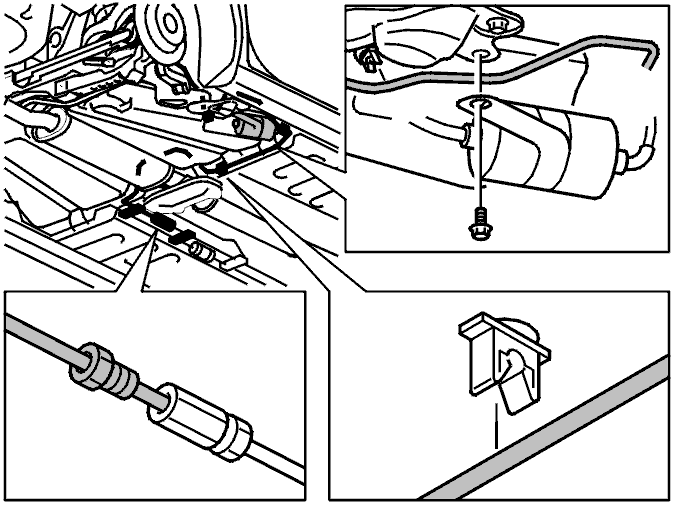

Fig 1: Brake Pipe, Clips And Mountings

Courtesy of VOLVO CARS CORPORATION

Remove:

• the brake pipe from the clip
• the brake pipe at the joint.

Remove the screw at the mounting for the fuel filter.

Fold the mounting down.

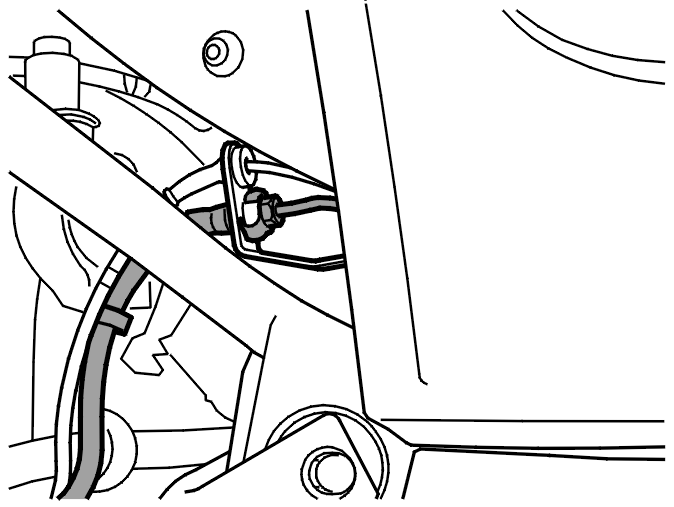

Fig 2: Identifying Brake Pipe

Courtesy of VOLVO CARS CORPORATION

Disconnect the brake pipe at the bracket.

Remove the brake pipe.
