Removing The Brake Hose

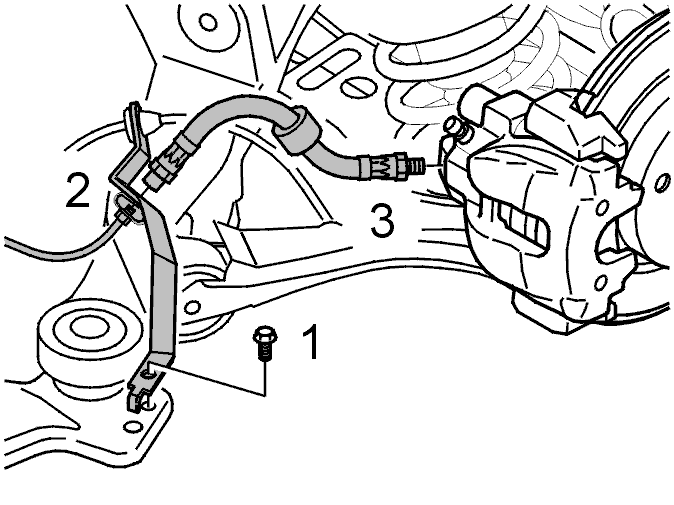

Fig 1: Identifying Brake Hose, Bracket And Brake Pipe

Courtesy of VOLVO CARS CORPORATION

Remove:

• the bracket (1) for the brake pipe and brake hose. Pull the bracket backward a little
• the brake pipe (2) from the brake hose
• the brake hose (3) from the brake caliper.
