Removing The Brake Pedal

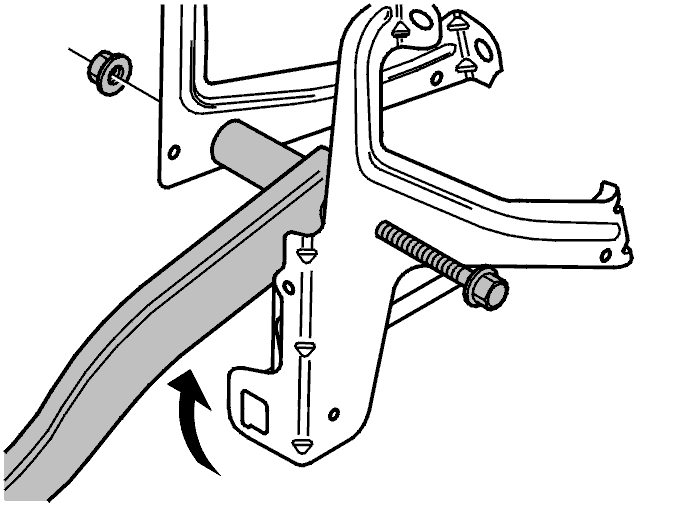

Fig 1: Identifying Pedal Mounting Screw And Nut

GLL104500

Courtesy of VOLVO CARS CORPORATION

Remove:

the screw and nut
the pedal.
