Parking Assistance, Front: Notes
NOTE:
During installation the car and parts must maintain a temperature of at least +20°C (68°F).
Applies to cars with decor panel, standard version
- Performed on 2 sensors.
Applies to cars with decor panel, painted version
- Performed on 4 sensors.

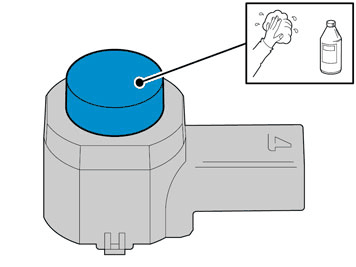

Applies to cars with decor panel, standard version
- Clean 2 sensors. Use: Isopropanol
- Allow to dry.
Applies to cars with decor panel, painted version
- Clean 4 sensors. Use: Isopropanol
- Allow to dry.

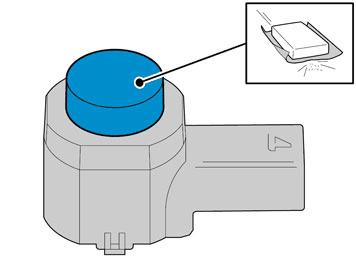

Applies to cars with decor panel, standard version
- Carefully mat down the surface on 2 sensors. Use Glasspaper, grade P1000
Applies to cars with decor panel, painted version
- Carefully mat down the surface on 4 sensors. Use Glasspaper, grade P1000
