Combined Instrument Panel, R-Design

Fig 1: Identifying VIDA (Service Information) To Program Software

Courtesy of VOLVO CARS CORPORATION

Before replacing Driver information module, programmed data shall be read out from the Driver information module. This is done in VIDA car communication. After replacing, the data in question shall be programmed in the new Driver information module.

Fig 2: Identifying Ignition Switch Turned To Position 0

Courtesy of VOLVO CARS CORPORATION

NOTE:

Wait at least three minutes before unplugging the connectors or removing other electrical equipment.

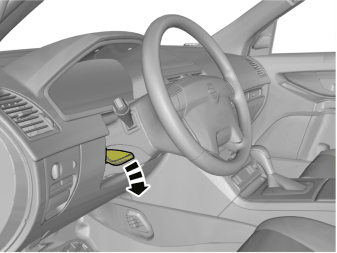

Fig 3: Lowering Steering Wheel

Courtesy of VOLVO CARS CORPORATION

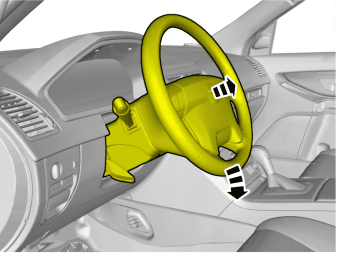

Fig 4: Lowering Steering Wheel

Courtesy of VOLVO CARS CORPORATION

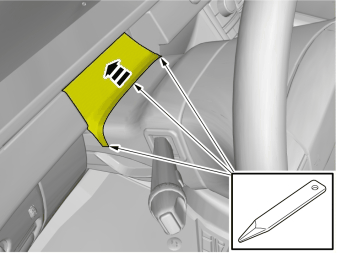

Fig 5: Removing Panel

Courtesy of VOLVO CARS CORPORATION

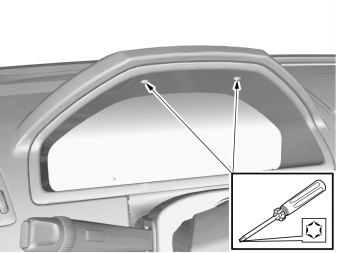

Fig 6: Identifying Torx Screws

Courtesy of VOLVO CARS CORPORATION

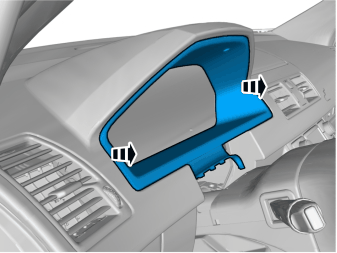

Fig 7: Removing Bezel

Courtesy of VOLVO CARS CORPORATION

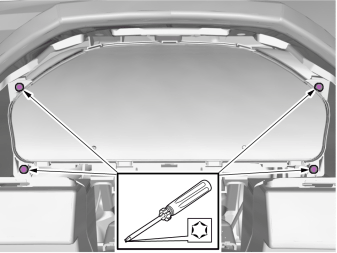

Fig 8: Identifying Torx Screws

Courtesy of VOLVO CARS CORPORATION

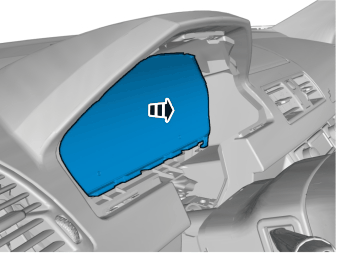

Fig 9: Removing Instrument Cluster

Courtesy of VOLVO CARS CORPORATION

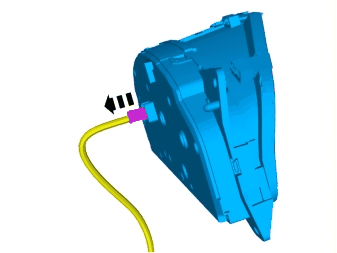

Fig 10: Removing Connector

Courtesy of VOLVO CARS CORPORATION

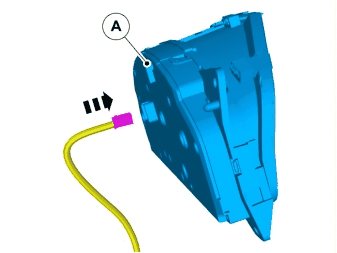

Fig 11: Installing Connector

Courtesy of VOLVO CARS CORPORATION

Fig 12: Identifying VIDA (Service Information) To Program Software

Courtesy of VOLVO CARS CORPORATION

Download new software for Driver information module acc. to the service information in VIDA (Volvo scan tool). After downloading, data read-out shall be programmed, the clock shall also be set.
