High-Pressure Washer Headlamp, Replacing: Installation

Fig 1: Detach The Cover From The Nozzle

Courtesy of VOLVO CARS CORPORATION

Install:

• the screws
• the clip
• the washer hose.

Pull out the washer using pliers.

Install the cover.

Carefully release back.

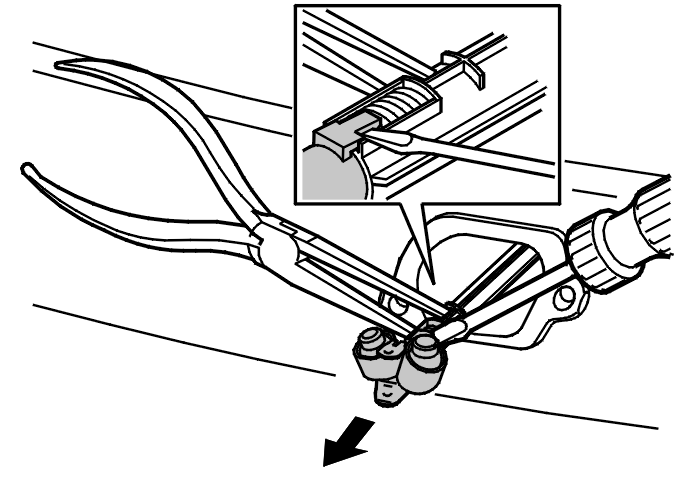

Fig 2: Adjust The Alignment Of The Nozzle As Necessary

Courtesy of VOLVO CARS CORPORATION

Adjust the alignment of the nozzle as necessary as illustrated. The cover must be against the bumper cover without any play.
