WASTEGATE Control Valve Adjustment: Check

Remove right front wheel, see WHEELS

Fig 1: Locating Engine Undercover And Clips

Courtesy of VOLVO CARS CORPORATION

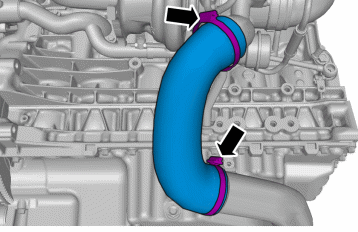

Fig 2: Identifying Hose Clamps

Courtesy of VOLVO CARS CORPORATION

Fig 3: Apply Universal Oil, 1161657

Courtesy of VOLVO CARS CORPORATION

Use: Universal oil, 1161657

Fig 4: Installing Special Tool (9512986)

Courtesy of VOLVO CARS CORPORATION

Fig 5: Verifying Full and Free Movement

Courtesy of VOLVO CARS CORPORATION

CAUTION: Make sure that the component moves freely between the end positions.

Repeat the following steps until the component moves freely. Some minimal binding is permitted.

Fig 6: Identifying Pressure Regulator

Courtesy of VOLVO CARS CORPORATION

Fig 7: Adjusting Pressure to Specified Value and Verify No Leak (Ensure Pressure-Drop Remains Within Specified Values)

Courtesy of VOLVO CARS CORPORATION

Fig 8: Both Measurements Equal Zero

Courtesy of VOLVO CARS CORPORATION

Fig 9: Identifying Pressure Regulator

Courtesy of VOLVO CARS CORPORATION

Fig 10: Pressure Graph

Courtesy of VOLVO CARS CORPORATION

CAUTION: If the specified pressure is exceeded repeat the steps.

See information about wastegate valve, see WASTEGATE VALVE

Fig 11: Measuring Maximum Value

Courtesy of VOLVO CARS CORPORATION

Note the value.

Fig 12: Pressure Graph

Courtesy of VOLVO CARS CORPORATION

CAUTION: If the specified pressure is exceeded repeat the steps.

See information about wastegate valve, see WASTEGATE VALVE

Fig 13: Measuring Maximum Value

Courtesy of VOLVO CARS CORPORATION

Note the value.

Calculate the average value.

Follow the instructions for wastegate valve, see WASTEGATE VALVE

If the average value is not according to specifications, adjust the stroke.
