Turbocharger (TC), Quick Check

Turn off the engine and listen to the turbocharger at the moment of stopping

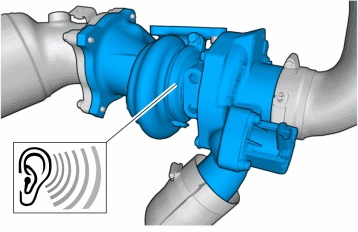

Fig 1: Checking Turbocharger

Courtesy of VOLVO CARS CORPORATION

Normally, the turbocharger's rotating parts shall stop slightly after the engine.

If this is not the case: remove the inlet hose from the compressor housing. Then check that:

• compressor rotor turns easily when rotating
• the compressor wheel does not rub against the compressor housing
• that axial and radial clearance feels normal

Feeling a certain clearance is normal when checking as the shaft floats on an oil film.
