Intake System, Check (B6324S/S2/S4/S5; 2008-12): Installation

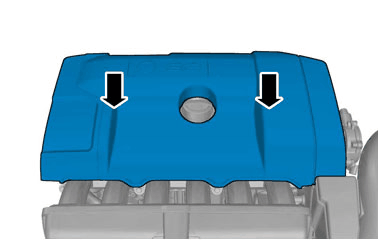

Fig 1: Installing Upper Engine Cover

GLL179968

Courtesy of VOLVO CARS CORPORATION

Install the air filter housing. See AIR CLEANER HOUSING
