Parking Assistance, Camera, Rear: Remove

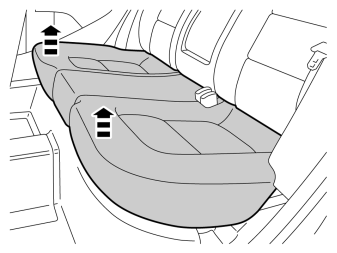

Fig 1: Remove Rear Seat Cushion

Courtesy of VOLVO CARS CORPORATION

• Remove the seat cushion by pulling it up at the front edge on both sides. It is secured by two holders on the lower side.

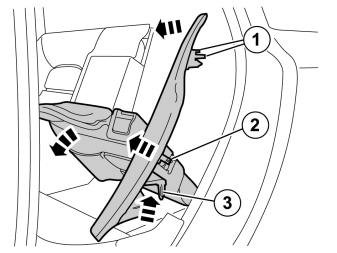

Fig 2: Remove Left Side Cushion

Courtesy of VOLVO CARS CORPORATION

• Fold the left-hand backrest forward.
• Remove the side cushion on the left by first pulling it backwards at the upper edge until the hooks (1) release. Then pull it inwards slightly until the hook (2) releases, and upwards until the locating pin (3) disengages from the mounting at the rear edge.

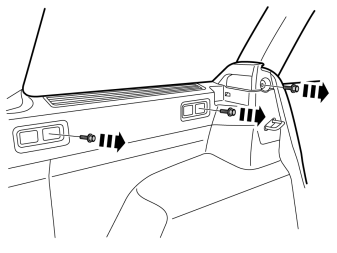

Fig 3: Identifying Side Panel Upper Edge Screws

Courtesy of VOLVO CARS CORPORATION

• Remove the three screws at the upper edge of the side panel and top panel.

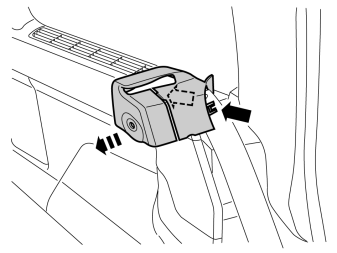

Fig 4: Identifying Side Panel Clip

Courtesy of VOLVO CARS CORPORATION

• Carefully pull off the top panel from the side panel, it is secured by a clip at the front edge and a locating pin at the rear edge.
• Unhook the seat belt and place the panel to one side.

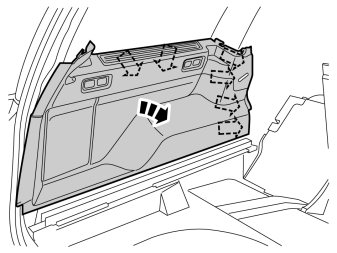

Fig 5: Locating Left-Hand Side Panel Clips

Courtesy of VOLVO CARS CORPORATION

• Remove the left-hand side panel by grasping it at the upper edge and carefully pulling it from the car body and lifting up. It is secured by six clips.

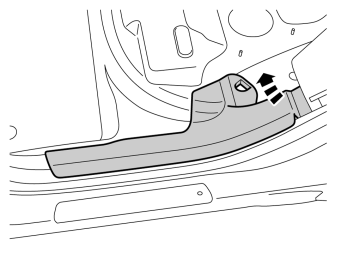

Fig 6: Removing Floor Trim

Courtesy of VOLVO CARS CORPORATION
