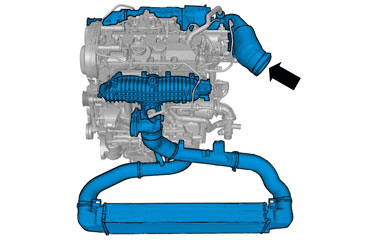

Intake System, Check [2014-2015, B4204T10, TG-81SC | 2014-2015, B4204T9, TG-81SC]

NOTE: For more information on Volvo color coded illustrations, refer to IMAGES

SPECIAL TOOLS

Courtesy of VOLVO CARS CORPORATION

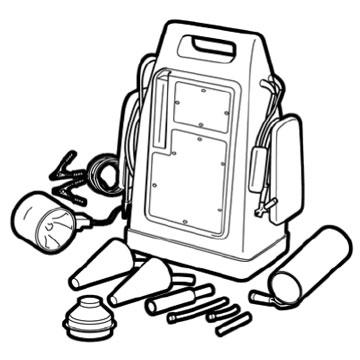

981 4118 LEAK DETECTOR
Tool number: 981 4118
Tool description: LEAK DETECTOR
Tool boards: EU99

REMOVAL

Courtesy of VOLVO CARS CORPORATION

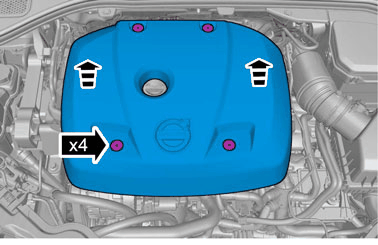

Loosen the clips.

Courtesy of VOLVO CARS CORPORATION

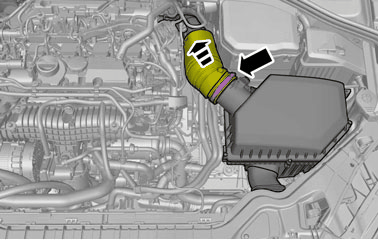

Loosen the hose clamp.

Remove the hose.

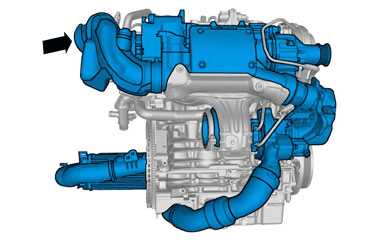

LEAK DETECTION

Courtesy of VOLVO CARS CORPORATION

NOTE:

Always follow the manufacturer's instructions when handling the equipment.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Always follow the manufacturer's instructions when handling the equipment.

INSTALLATION

Courtesy of VOLVO CARS CORPORATION

Install the hose.

Tighten the hose clamp.

Courtesy of VOLVO CARS CORPORATION

Install the clip (s).
