Sun Shield [2014-2018]

Courtesy of VOLVO CARS CORPORATION

Equipment

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Component overview

Courtesy of VOLVO CARS CORPORATION

Materials
Designation	Part number
soap solution

INFORMATION

• Read through all of the instructions before starting installation.
• Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
• Ensure that all tools stated in the instructions are available before starting installation.
• Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
• In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.

CONDITIONS

The surface must be free from damage.

Use suitable protection for the vehicle interior.

Only use the tools stated in the instruction.

The work may only be performed by trained personnel and at an approved location for this type of work.

The method shows how to handle a rear window but the method is a general instruction and applies to all vehicle windows

Make sure that the workshop area in which the vehicle is being worked on is as clean and as dust free as possible.

PREPARATION

Courtesy of VOLVO CARS CORPORATION

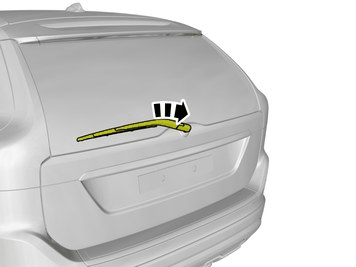

ACCESSORY INSTALLATION

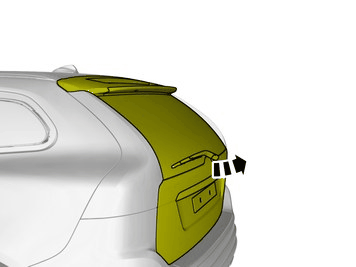

The step concerns the vehicle exterior.

Courtesy of VOLVO CARS CORPORATION

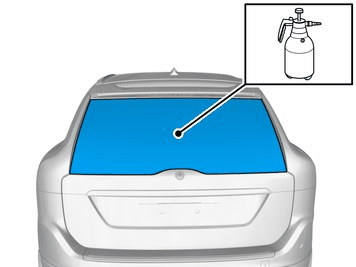

Use:  soap solution,

Courtesy of VOLVO CARS CORPORATION

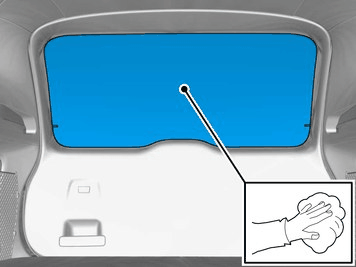

Clean the surfaces.

Courtesy of VOLVO CARS CORPORATION

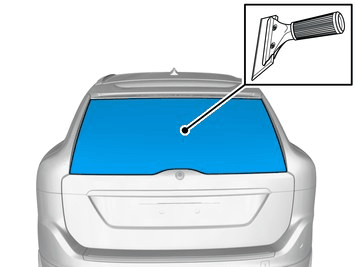

Wipe dry.

CHECK

Courtesy of VOLVO CARS CORPORATION

Use:  soap solution,

Courtesy of VOLVO CARS CORPORATION

Pre-cut. Make sure to cut the film leaving a couple of centimeters margin.

Curved window glass

Courtesy of VOLVO CARS CORPORATION

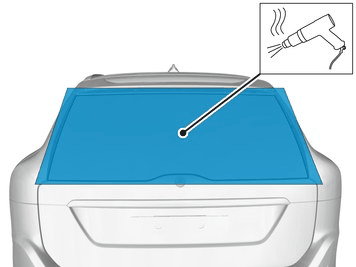

Carry out the heat shrinking and shape the film.

Make sure not to leave any folds or creases.

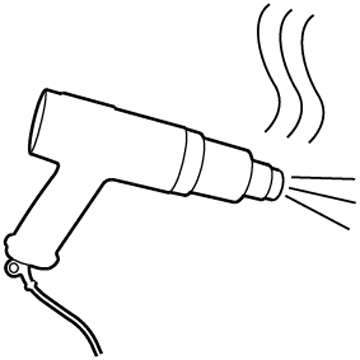

Use:  Hot-air gun

All vehicles

Courtesy of VOLVO CARS CORPORATION

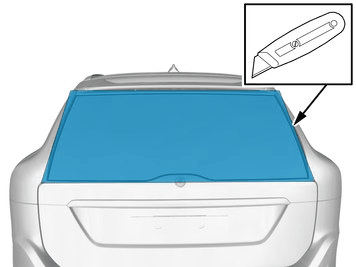

Final cut. Cut the film following the window height and width dimensions.

ORIENTATION VIEW

Courtesy of VOLVO CARS CORPORATION

ACCESSORY INSTALLATION

Courtesy of VOLVO CARS CORPORATION

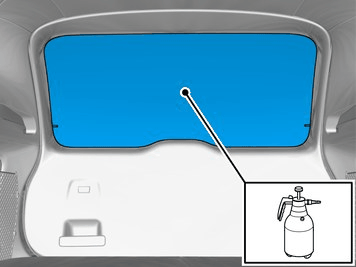

Use:  soap solution,

Courtesy of VOLVO CARS CORPORATION

Clean the surfaces.

Courtesy of VOLVO CARS CORPORATION

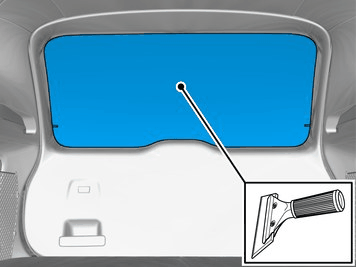

Wipe dry.

Courtesy of VOLVO CARS CORPORATION

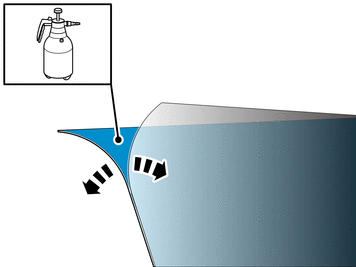

To keep out the dust, apply solution on the film while removing the liner.

Save the liner for later use.

Use:  soap solution,

Courtesy of VOLVO CARS CORPORATION

Use:  soap solution,

Courtesy of VOLVO CARS CORPORATION

Place the film on the glass window.

Courtesy of VOLVO CARS CORPORATION

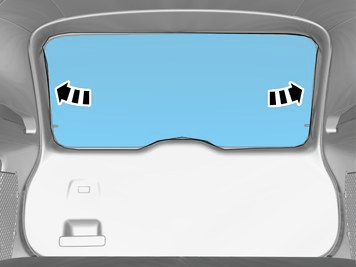

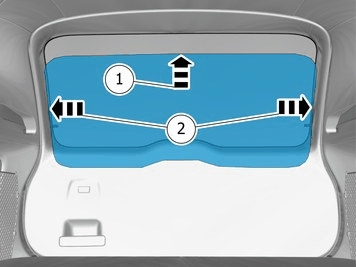

Adjust the film into correct position on the window glass.

Courtesy of VOLVO CARS CORPORATION

Place the liner on the film.

Courtesy of VOLVO CARS CORPORATION

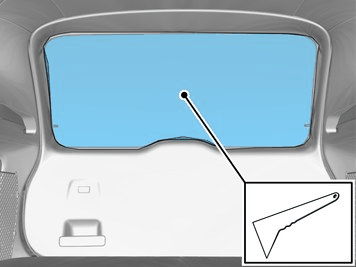

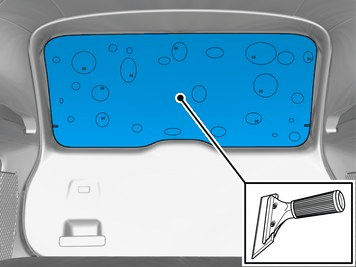

Use the tool to remove air bubbles and water drops.

Make final adjustments of the film, using the hot-air gun.
