End Pipes, Double [2014-2018]: Introduction

INFORMATION:

• Read through all of the instructions before starting installation.
• Notifications and warning texts are for your safety and to minimize the risk of something breaking during installation.
• Ensure that all tools stated in the instructions are available before starting installation.
• Certain steps in the instructions are only presented in the form of images. Explanatory text is also given for more complicated steps.
• In the event of any problems with the instructions or the accessory, contact your local Volvo dealer.

FURTHER INFORMATION:

When installing, the car must retain a temperature of 20 degrees C.

There may be parts in the accessories kit that are not needed for this installation.

REMOVAL:

VEHICLES WITH INTEGRATED EXHAUST END PIPES:

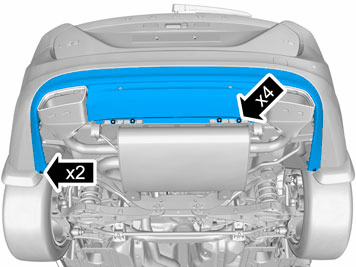

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

Remove the clips.

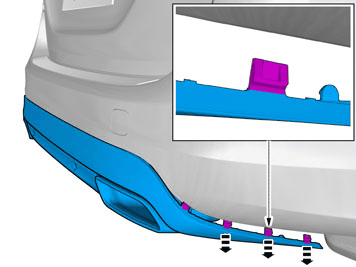

Courtesy of VOLVO CARS CORPORATION

Detach the panel.

On both sides.

Use:  Interior trim remover

VEHICLES WITH PARKING ASSISTANCE:

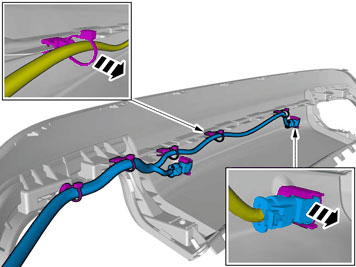

Courtesy of VOLVO CARS CORPORATION

The part is to be reused.

ALL VEHICLES:

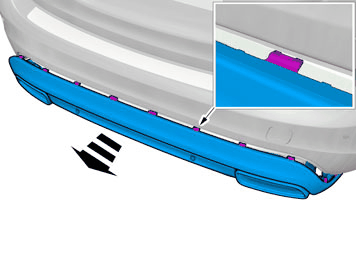

Courtesy of VOLVO CARS CORPORATION

Remove the panel.

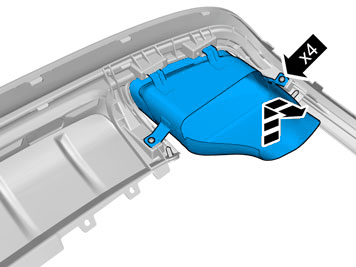

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

On both sides.

Remove the part carefully

ACCESSORY INSTALLATION:

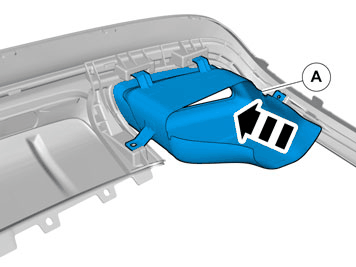

Courtesy of VOLVO CARS CORPORATION

Install component that comes with the accessory kit.

On both sides.

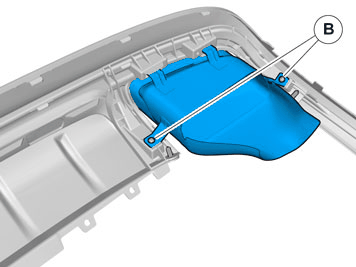

Courtesy of VOLVO CARS CORPORATION

Install the screws.

On both sides.

Reinstall the removed parts in reverse order.

APPLIES TO VEHICLES WITH DOUBLE END PIPE:

Courtesy of VOLVO CARS CORPORATION

Install component that comes with the accessory kit.

On both sides.

Courtesy of VOLVO CARS CORPORATION

Install the screws.

On both sides.

APPLIES TO VEHICLES WITH SINGLE END PIPE:

Courtesy of VOLVO CARS CORPORATION

Install component that comes with the accessory kit.

On both sides.

Courtesy of VOLVO CARS CORPORATION

Install the screws.

On both sides.
