Applies To Cars With Automatic Transmissions

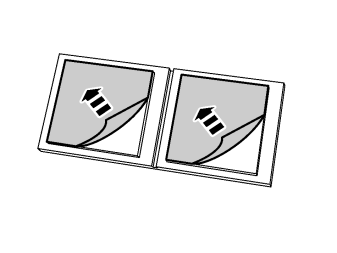

Fig 1: Removing Protective Film

Courtesy of VOLVO CARS CORPORATION

• Take the two spacer washers from the kit. Remove the protective film from the covers. Ensure that the surfaces of the pedals are clean.

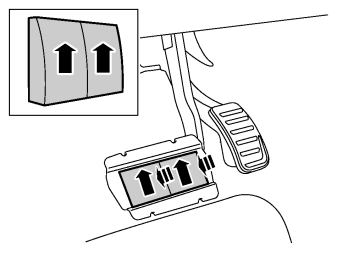

Fig 2: Positioning Spacers

Courtesy of VOLVO CARS CORPORATION

• Position the longer cover, which has markings, in the recess on the brake pedal and press securely. The thicker part of the cover must point downwards.

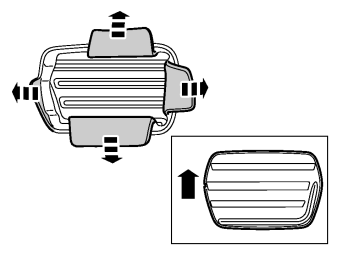

Fig 3: Opening the Tabs

Courtesy of VOLVO CARS CORPORATION

• Take the brake pedal's metal trimmed rubber cover from the kit.
• Hold as shown and fold out the three tabs.

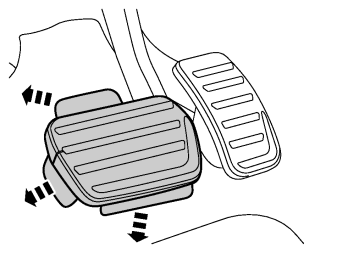

Fig 4: Fitting the Cover

Courtesy of VOLVO CARS CORPORATION

• Hook the cover onto the right-hand shorter side of the pedal, at the same time hold the tabs and pull to the left and downwards.
• Press the cover firmly onto the pedal.

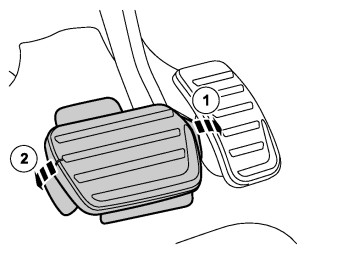

Fig 5: Securing the Cover

Courtesy of VOLVO CARS CORPORATION

• Pull the tabs down slightly and check that the edges of the cover surround the pedal edges. Pull the cover to ensure that it is secure.
