Installing The Protective Covers

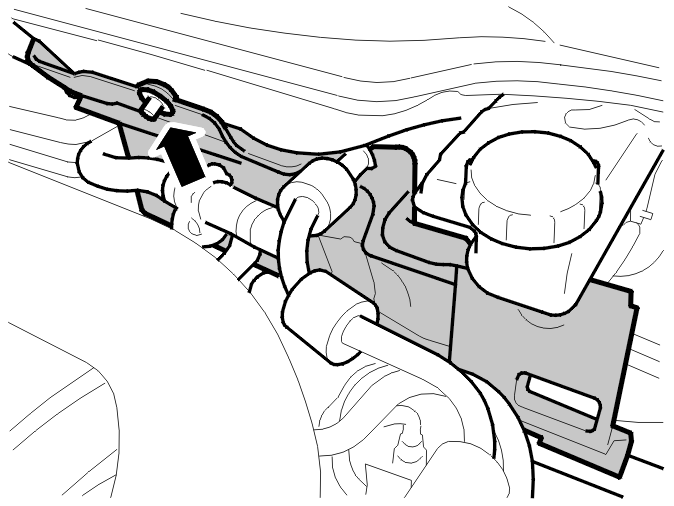

Fig 1: Identifying Firewall Upper Protective Cover Nut

Courtesy of VOLVO CARS CORPORATION

Install:

• the upper protective cover for the firewall
• the plastic nut, x1.

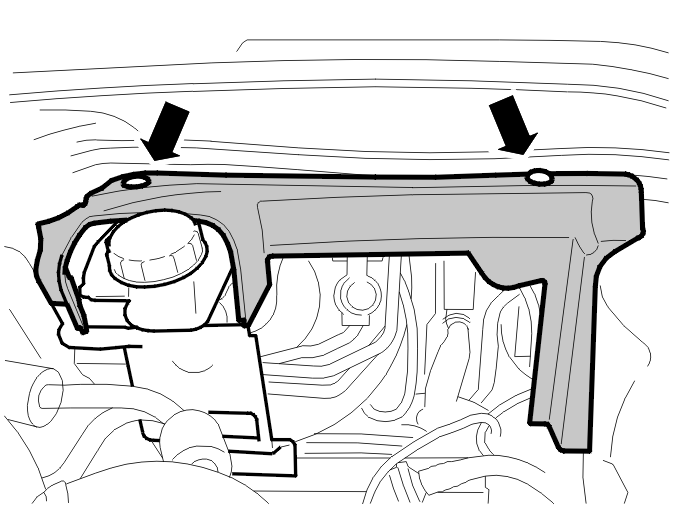

Fig 2: Identifying Brake Fluid Reservoir Protective Cover

Courtesy of VOLVO CARS CORPORATION

Install the protective cover over the brake fluid reservoir. Carefully lift up the cowl. Install the 2 clips for the protective cover.

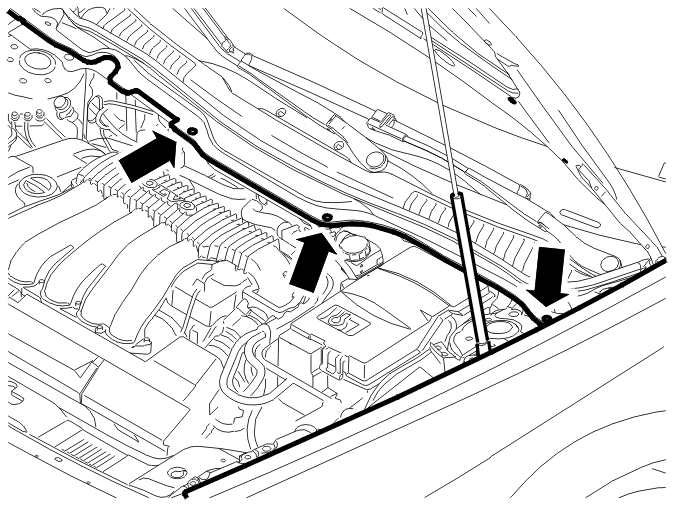

Fig 3: Identifying Cowl Fasteners

Courtesy of VOLVO CARS CORPORATION

Install the 3 clips holding the cowl.
