Parking Assistance, Rear

Fig 1: Identifying Front Parking Assistance Sensor

Courtesy of VOLVO CARS CORPORATION

Fig 2: Cleaning Sensors

Courtesy of VOLVO CARS CORPORATION

Clean the sensors. Use: Isopropanol
Allow to dry.

Fig 3: Matting Surface Down

Courtesy of VOLVO CARS CORPORATION

Carefully mat down the surface. Use Glasspaper, grade P1000.

Fig 4: Cleaning Sensors

Courtesy of VOLVO CARS CORPORATION

Clean the sensors again. Use: Isopropanol.
Allow to dry.
Avoid contact with the cleaned surfaces.

Fig 5: View Of Painting Sensors

Courtesy of VOLVO CARS CORPORATION

CAUTION:

Protect the connections' contact surfaces against paint.

Paint the sensors in the same color code as the vehicle.
Use Volvo Touch-up paint. (Only use base coat.)
use Volvo 2-K Varnish. P/N: 31335447 .

NOTE:

Also read the instructions on the spray can.

Fig 6: Installing Rear Parking Assistance Sensor Bezel

Courtesy of VOLVO CARS CORPORATION

CAUTION:

The paint must have dried after the first application.

Fig 7: Identifying Ignition Switch Turned To Position 0

Courtesy of VOLVO CARS CORPORATION

Turn the ignition key to position 0.
NOTE:
Wait at least three minutes before unplugging the connectors or removing other electrical equipment.

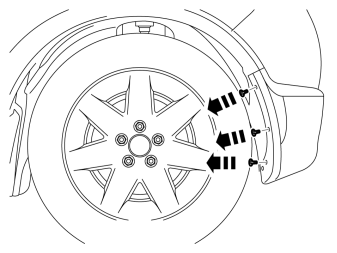

Fig 8: Identifying Screws On Rear Bumper Cover End

Courtesy of VOLVO CARS CORPORATION

Remove the 3 x screws on the rear bumper cover's end.
Repeat the operation on the other side.

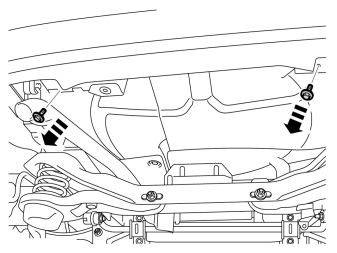

Fig 9: Identifying Lower Bumper Cover Screws

Courtesy of VOLVO CARS CORPORATION

Remove the 2 x screws on the underneath of the bumper cover.

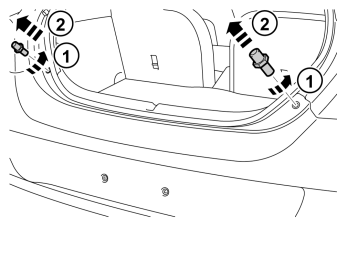

Fig 10: Removing Tailgate Stops

Courtesy of VOLVO CARS CORPORATION

Remove the tailgate's 2 x stops by turning them a quarter turn and pulling straight up.

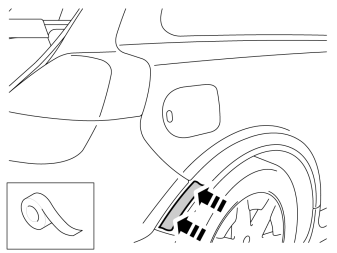

Fig 11: Applying Piece Of Tape To Wing Edge

Courtesy of VOLVO CARS CORPORATION

Apply a piece of tape to the wing edge on the right and left-hand side to protect the edge when the corner of the bumper cover is removed.

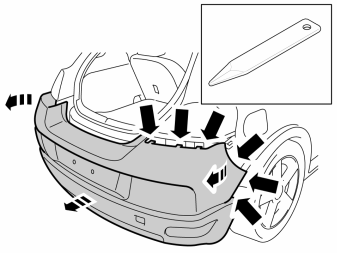

Fig 12: Removing Rear Bumper Cover From Body

Courtesy of VOLVO CARS CORPORATION

Remove the bumper cover from the body by carefully prying off the ends using a weatherstrip tool.
Pull the cover from the tail lamp and rear edge of the wing on each side. It is secured by four catches at the tail lamp and four at the rear edge of the rear wing.
Pull the bumper cover straight back.

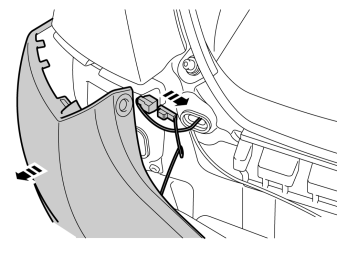

Fig 13: Identifying License Plate Lighting Connector

Courtesy of VOLVO CARS CORPORATION

Disconnect the connector for the license plate lighting on the left-hand side.
Place the bumper cover on a protective surface.
Remove the pieces of tape.

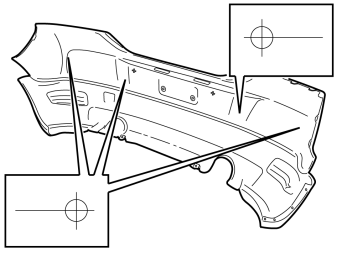

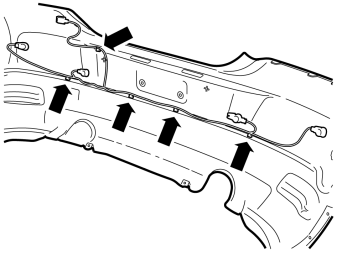

Fig 14: Locating Markings On Inside Of Bumper Cover

Courtesy of VOLVO CARS CORPORATION

Locate the 4 x markings on the inside of the bumper cover.
Mark center with a scribe.

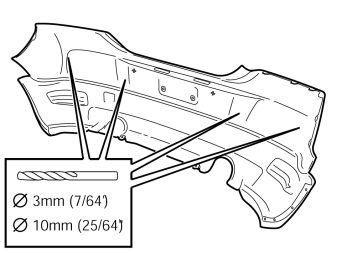

Fig 15: Drilling Holes In Centers Of Markings

Courtesy of VOLVO CARS CORPORATION

Drill holes in the centers of the markings using a Ø 3 mm (7/64) diameter drill bit.
Drill out the holes. Use a Ø10 mm (25/64") diameter drill bit.

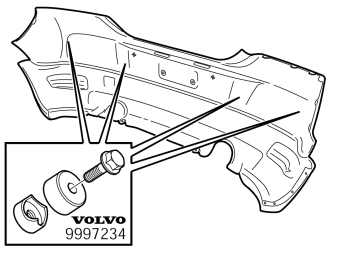

Fig 16: Identifying Special Tool P/N 9997234

Courtesy of VOLVO CARS CORPORATION

Enlarge the holes in the bumper cover using hole tool P/N 9997234 . Place the hole tool's support sleeve on the inside, and the cutting component on the outside of the bumper cover.

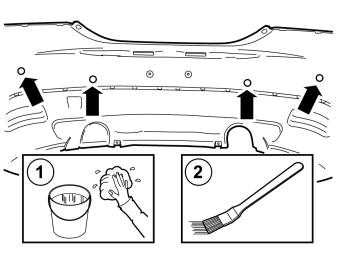

Fig 17: Cleaning Inside Of Bumper Cover And Applying Activator

Courtesy of VOLVO CARS CORPORATION

Clean the inside of the bumper cover using a mild soap solution.
Clean around the holes and the markings using isopropanol.
Allow to dry.
Apply a thin layer of activator, part no. 8637076 , to the cleaned surfaces and let dry for approx. 10 min.

Fig 18: Identifying Holder

Courtesy of VOLVO CARS CORPORATION

Take the 4 holders from the kit.
Clean the surfaces as shown in the illustration using isopropanol.
Allow to dry.
Apply a thin and even layer of activator part no. 8637076 , on the cleaned surfaces and let dry for at least 10 min.

Fig 19: Identifying Rear Seat Cushion

Courtesy of VOLVO CARS CORPORATION

Pull off the seat cushion for the rear seat, first at the rear edge where it is secured by one holder. Then at the front edge where it is secured by two holders.
Remove the seat cushion.

Fig 20: Identifying Central Arm Rest

Courtesy of VOLVO CARS CORPORATION

Fold the central arm rest forward.
Remove the central arm rest by grasping each end and pulling upwards until it releases at the rear edge from the backrest's lugs (1).
Then pull forwards until the holders (2) on the sides of the backrest have slid out of the corresponding cut-out (3) in the central arm rest.

Fig 21: Identifying Backrest Cover

Courtesy of VOLVO CARS CORPORATION

Fold the backrest forward.
Remove the cover for the backrest's right-hand mounting.

Fig 22: Identifying Locking Sleeve And Screw

Courtesy of VOLVO CARS CORPORATION

Remove the screw and the locking sleeve.

Fig 23: View Of Backrest Stowed

Courtesy of VOLVO CARS CORPORATION

Fold the backrest away from the right-hand mounting.
Pull it out from the mounting at the arm rest and remove it.

Fig 24: Identifying Rubber Door Molding RH

Courtesy of VOLVO CARS CORPORATION

Pull off the rubber molding at the rear edge of the right-hand door opening.

Fig 25: Identifying B Pillar Panel

Courtesy of VOLVO CARS CORPORATION

Detach the B pillar panel at the rear edge by prying the sides using a weatherstrip tool until the 2 x clips release

Fig 26: View Of Safety Clip Strap

Courtesy of VOLVO CARS CORPORATION

Unhook the safety clip from the panel.
Angle out the panel at the lower edge, and then unhook it at the upper edge so that the upper clip releases.

Fig 27: Identifying Rear Seat RH Panel

Courtesy of VOLVO CARS CORPORATION

Remove the screw from the right-hand panel in the rear seat.
Carefully pull off the panel from the body side. It is secured by ten clips on the inside.
Unhook it from the sill at the front edge.

Fig 28: Identifying Trunk Floor Cover

Courtesy of VOLVO CARS CORPORATION

Lift up the floor hatch at the rear edge.
Pull it backwards so that it detaches at the front edge.
Turn the cover and lift out.

Fig 29: Identifying Tailgate's Sill Panel

Courtesy of VOLVO CARS CORPORATION

Remove the tailgate's sill panel by pulling it up until the four clips on the upper side and the catches at the lower edge release.

Fig 30: Identifying Right-Hand Rear Side Panel

Courtesy of VOLVO CARS CORPORATION

Remove the clips at the rear edge of the right-hand rear side panel.
Carefully pull the side panel off, starting at the front edge/upper edge and then straight back until all clips at the top edge have released.
Fold the panel inwards. Release it from the anchorage eyelets and lift it out of the load floor support.

Fig 31: View Of Spare Wheel, Jack And Other Parts From Storage Compartment

Courtesy of VOLVO CARS CORPORATION

Lift out the spare wheel, jack and other parts from the storage compartment in the cargo floor support.

Fig 32: Identifying Spare Wheel Compartment Screws

Courtesy of VOLVO CARS CORPORATION

Remove the 4 x screw clips in the cargo floor support.

Fig 33: Installing Tape On Holders

Courtesy of VOLVO CARS CORPORATION

Remove the protective film from one side of the double-backed tape.
Secure the tape on the holder.

Fig 34: Installing Centering Tool In Holder

Courtesy of VOLVO CARS CORPORATION

Remove the remaining protective film.
Install the centering tool in the holder as shown in the illustration.

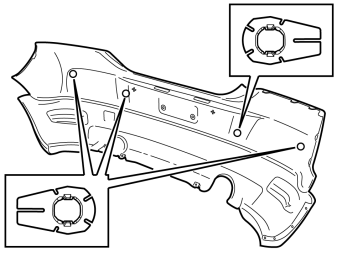

Fig 35: Mounting Holders In Bumper Cover

Courtesy of VOLVO CARS CORPORATION

Press in the cradle on the bumper cover.

NOTE:

The holders must be mounted turned against the holes as shown in the illustration. The holders must also be horizontal and in line with the bumper cover.

Repeat the steps for the other holders.

Fig 36: Connect Cable Harness Connectors To Sensors

Courtesy of VOLVO CARS CORPORATION

Connect the cable harness connectors to the sensors.
Install the sensors in their holders.

NOTE:

The large grey connector must be on the right-hand side.

Fig 37: Securing Cable Harness

Courtesy of VOLVO CARS CORPORATION

Press the cable harness holder onto the flanges of the bumper cover.

Fig 38: Identifying Rubber Seal Below Right-Hand Tailgate Stop

Courtesy of VOLVO CARS CORPORATION

Remove the rubber seal that is below the right-hand tailgate stop.

Fig 39: Pulling Cable Through Hole In Cargo Compartment

Courtesy of VOLVO CARS CORPORATION

Take the cable harness with the rubber grommet from the kit.
Pull the cable harness through the hole in the cargo compartment.
Place the rubber grommet in position.
Press the connector on the plastic bracket.

Fig 40: Identifying Control Module And Holder

Courtesy of VOLVO CARS CORPORATION

Take the control module and holder from the kit.
Press the holder onto the reverse of the control module.

Fig 41: Connecting Pre-Routed Cable Harness Connector To Control Module

Courtesy of VOLVO CARS CORPORATION

Connect the pre-routed cable harness connector to the control module.

NOTE:

Ensure that the connector's catches click and are properly secured.

Fig 42: Lifting Right-Hand Side Cargo Floor Support

Courtesy of VOLVO CARS CORPORATION

Raise the right-hand side cargo floor support.

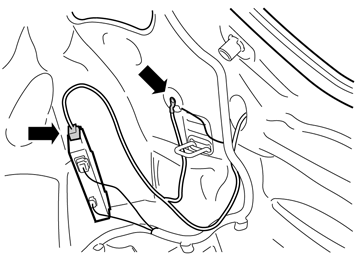

Fig 43: Identifying Green 5 Pin Connector

Courtesy of VOLVO CARS CORPORATION

Locate the green 5 pin connector that is taped to the ordinary cable harness on the vehicle.
Remove the tape and connect the connector to the control module's cable harness.

Fig 44: Pressing Control Module Onto Floor Studs With Connections Facing Forward In Vehicle

Courtesy of VOLVO CARS CORPORATION

Locate the 2 studs on the floor.
Press the control module onto these with the connections facing forward in the vehicle.

Fig 45: Securing Cable Harness Using Tie Straps

Courtesy of VOLVO CARS CORPORATION

Secure the cable harness using 3 x tie straps.

Fig 46: Identifying Trailer Module Connector And Ground Lead

Courtesy of VOLVO CARS CORPORATION

Applies to vehicles with tow bar wiring.

Detach the towbar wiring connector from the Trailer Module (TRM).
Disconnect the ground lead.

Fig 47: Identifying Secondary Lock

Courtesy of VOLVO CARS CORPORATION

Release the terminal locking by pressing the catch down and pulling the locking straight out.

Fig 48: View Of Cable Lug From Connector

Courtesy of VOLVO CARS CORPORATION

Applies to vehicles with tow bar wiring.

Disconnect all terminals from the connector.

NOTE:

Note the location of the cables in the connector.

Use special tool 9512810 or 9512632.
Insert the tool in the connector and release the locking.
Pull out the cable with terminal.
Pull out the cable harness through the rubber grommet.
Remove the rubber grommet, it shall not be re-used.

Fig 49: Identifying Rubber Spout And Tow Bar Wiring

Courtesy of VOLVO CARS CORPORATION

Applies to vehicles with tow bar wiring.

Cut off the free rubber spout (1) on the rubber grommet of the PAS wiring.
Thread the tow bar wiring through. Lubricate the tow hitch wiring using Volvo's low temperature grease and thread the tow bar wiring (2) through.
Connect the terminals to the connector.
Secure the locking and connect to the trailer module (TRM).

Fig 50: Identifying Connectors And Wiring

Courtesy of VOLVO CARS CORPORATION

The existing 5 pin green connector is connected to the trailer module (TRM) (1).
Detach the connector to the control module and connect it to the PAS wiring (2).
Disconnect the 5 pin green connector (3) that is taped to the wiring and connect it to the trailer module (TRM).

Fig 51: Connecting Parking Assistance Connector And License Plate Lighting Connector And Re-Installing Bumper Cover

Courtesy of VOLVO CARS CORPORATION

Raise the bumper cover to the car.
Connect the connectors for parking assistance and license plate lighting.
Reinstall the bumper cover with its screws.
Reinstall the stops for the tailgate.

Fig 52: Identifying Panel Screw

Courtesy of VOLVO CARS CORPORATION

Reinstall in the cargo compartment:

side panel
clips for the cargo floor support
sill molding
sill trim panel
applicable spare wheel
jack and other parts in the cargo floor support
the floor hatch

Fig 53: Locating Ten Panel Clips

Courtesy of VOLVO CARS CORPORATION

NOTE:

There are 10 clips on the reverse of the panel that must engage in the body. Take care when aligning so that the clips do not break. Broken clips must be replaced with new ones.

Fig 54: Identifying Panel Clips And Screws

Courtesy of VOLVO CARS CORPORATION

Reinstall the side panel by first aligning it on the sill at the front edge and then pressing it against the body side, ensure that all clips engage.
Tighten the panel using existing screws.

Fig 55: View Of B Pillar Panel Clips

Courtesy of VOLVO CARS CORPORATION

Reinstall the panel with the safety clip.
Reinstall the weatherstrip.

Reinstall:

backrest - tighten the screw to 15 Nm (11 lbf. ft) .
the armrest
cushion

Fig 56: Identifying VIDA (Volvo Scan Tool) To Program Software

Courtesy of VOLVO CARS CORPORATION

Download software (application) for the accessory's function using VIDA (Volvo scan tool).
