Removing The Master Cylinder

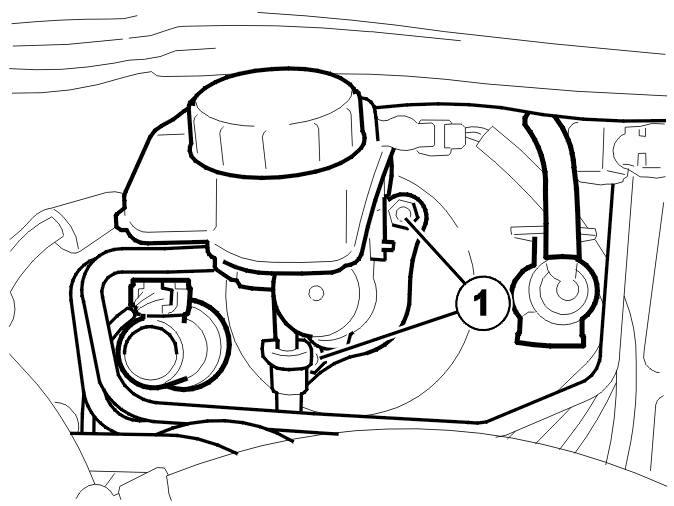

Fig 1: Identifying Brake Master Cylinder Fasteners
GLL140026Courtesy of VOLVO CARS CORPORATION

Remove the 2 nuts. Pull the master cylinder out from the studs. Allow the master cylinder to hang from the brake pipes.

NOTE: Do not damage the brake pipes when removing the master cylinder.
