Reservoir, Brake Fluid: Removal

NOTE: Removal steps in this procedure may contain installation details.

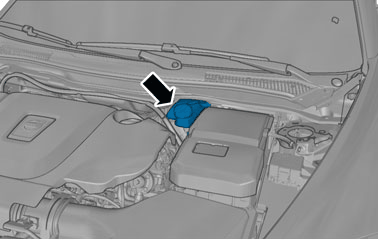

Fig 1: Locating Brake Master Cylinder Reservoir

Courtesy of VOLVO CARS CORPORATION

Remove master cylinder brake. See MASTER CYLINDER, BRAKE

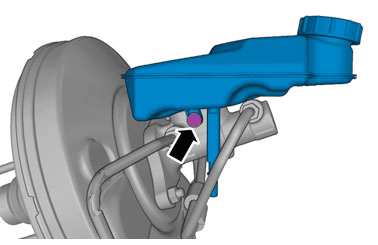

Fig 2: Identifying Brake Master Cylinder Reservoir Retaining Bolt

Courtesy of VOLVO CARS CORPORATION

Torque: Brake fluid reservoir in master cylinder

3.5 Nm

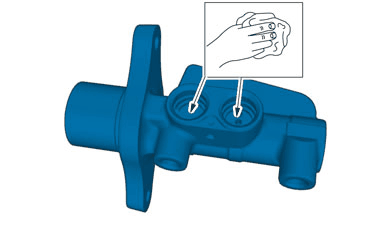

Fig 3: Identifying Mating Surfaces

Courtesy of VOLVO CARS CORPORATION

CAUTION: Make sure that the mating faces are clean and free of foreign material.
