Removing The Power Brake Booster

Fig 1: Identifying Brake Booster Push Rod
GLL140029Courtesy of VOLVO CARS CORPORATION

Remove the pin for the power brake booster.

NOTE: The pin cannot be entirely removed. It must be replaced with a new pin on installation.

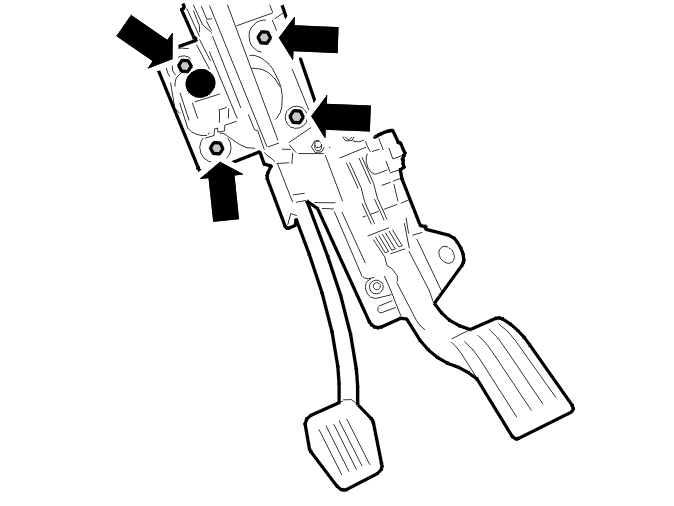

Fig 2: 4 Nuts Holding Power Brake Booster
GLL140030Courtesy of VOLVO CARS CORPORATION

Remove:
