Removing The Pedal Sensor

Fig 1: Identifying Pedal Sensor Connector

Courtesy of VOLVO CARS CORPORATION

Remove:

• the pressure sensor (1)
• the connector (2).

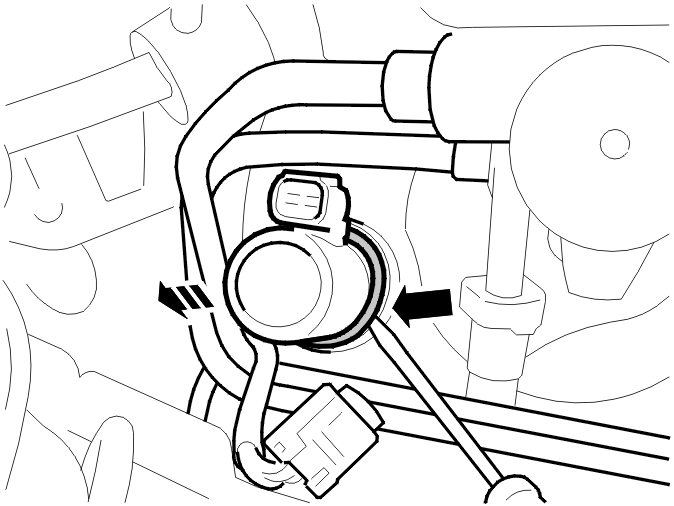

Fig 2: Identifying Pedal Sensor

Courtesy of VOLVO CARS CORPORATION

Remove the pedal sensor. Widen the snap ring and pull out the pedal sensor.

HINT: The opening on the snap ring points straight down. The snap ring does not need to be completely removed, just opened.
