Removing Splash Guards

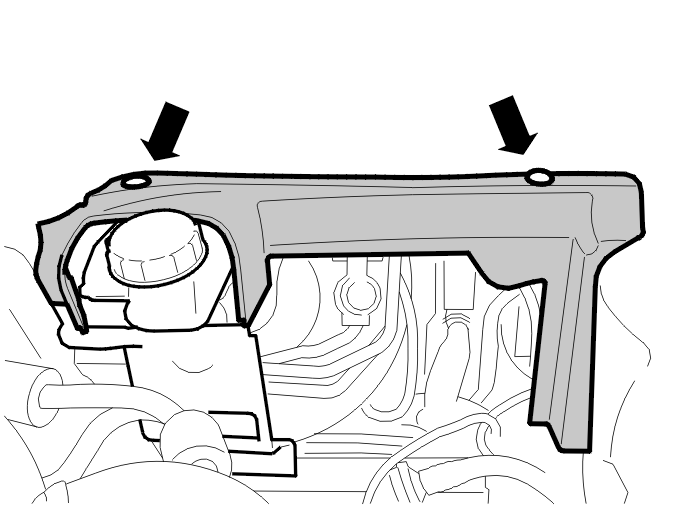

Fig 1: Identifying Protective Cover

Courtesy of VOLVO CARS CORPORATION

Remove:

• the 2 clips
• the protective cover over the brake fluid reservoir.

Fig 2: Identifying Protective Cover

Courtesy of VOLVO CARS CORPORATION

Remove:

• the plastic nut
• the protective cover for the firewall.
