Installing The Pedal Sensor

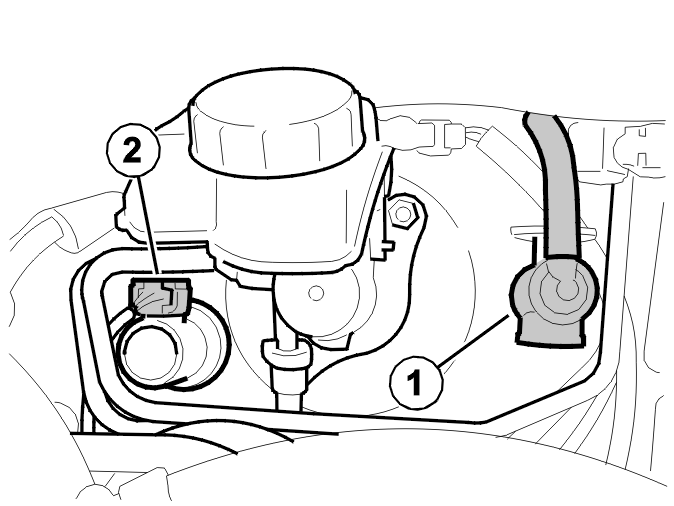

Fig 1: Identifying Pedal Sensor Connector

Courtesy of VOLVO CARS CORPORATION

Press in the new pedal sensor.

NOTE: Use a new O-ring. The pedal sensor can only be installed in one position, i. e. with the locating pin pointing straight up.

Lubricate with soap solution and install the pressure sensor (1).

Connect the electrical connector (2).
