Installing The Brake Pipes

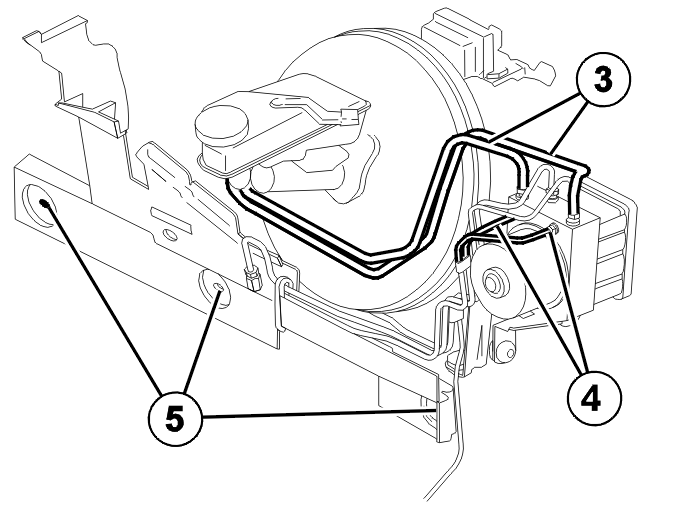

Fig 1: Brake Lines ABS Unit/Pipe Coupling Rear

Courtesy of VOLVO CARS CORPORATION

Install:

• the two brake tubes (3)
• the lower protective cover for the firewall
• the 3 nuts (5)
• the two brake tubes (4).
