Installing The Heat Deflector Plate

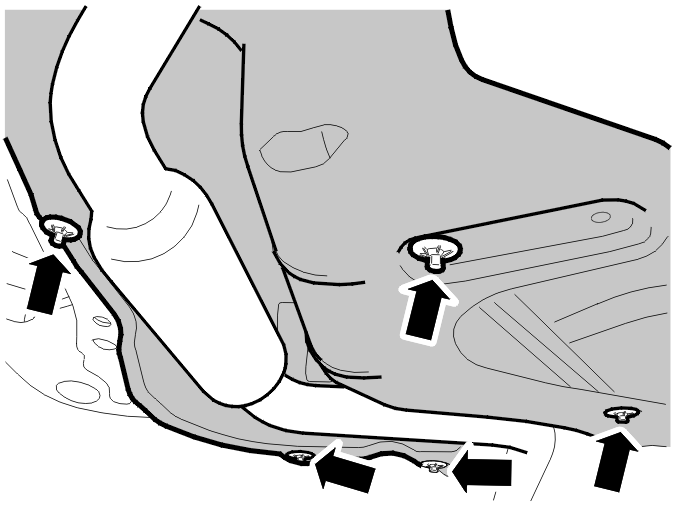

Fig 1: Identifying Heat Deflector Plate

GLL140039

Courtesy of VOLVO CARS CORPORATION

Applies to the left-hand side.

Install:

the heat deflector plate
the 5 plastic nuts.
