Installing The Front-Rear Brake Pipe

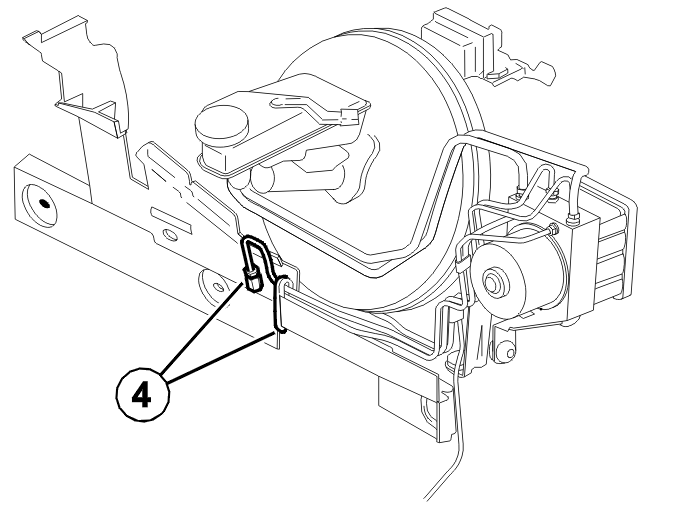

Fig 1: Brake Lines ABS Unit/Pipe Coupling Rear

Courtesy of VOLVO CARS CORPORATION

Install the two brake pipes (4).

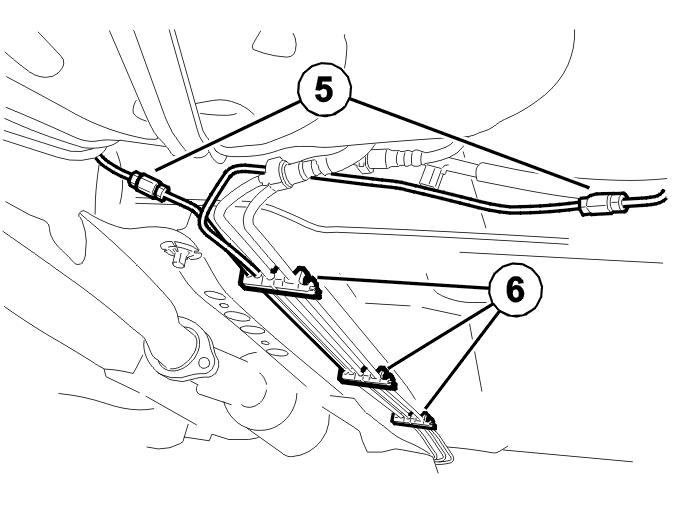

Fig 2: Identifying Brake Pipes And Clips

Courtesy of VOLVO CARS CORPORATION

Install:

• the two brake pipes (5)
• the six clips.
