Removing The Brake Pipe

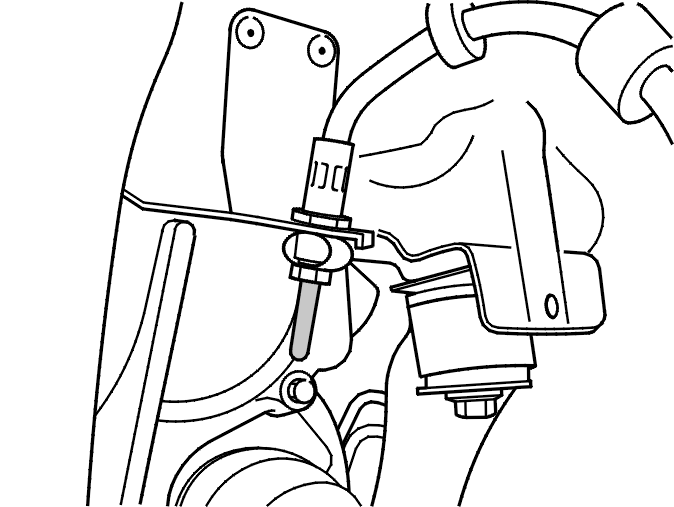

Fig 1: Identifying Protective Cover

Courtesy of VOLVO CARS CORPORATION

Remove the nut for the lower protective cover for the firewall.

Remove the brake pipe from the ABS unit. Install the plug.

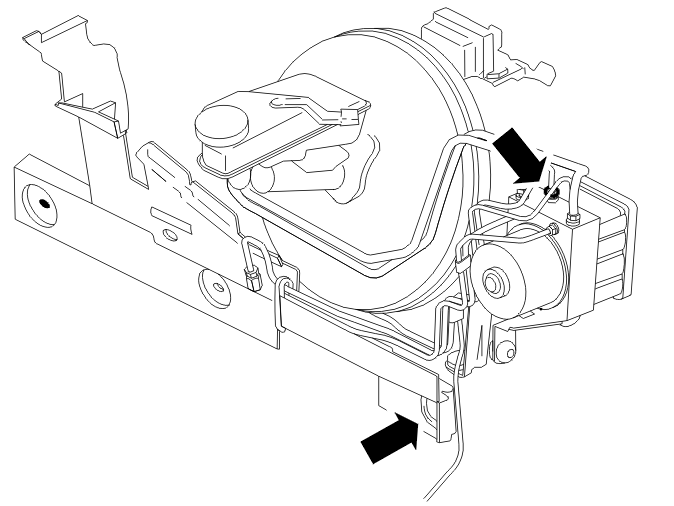

Fig 2: Identifying Brake Hose/Pipe And Clip

Courtesy of VOLVO CARS CORPORATION

Remove:

• the brake pipe from the brake hose
• the brake pipe from the clips.
