Installing The Heat Deflector Plate

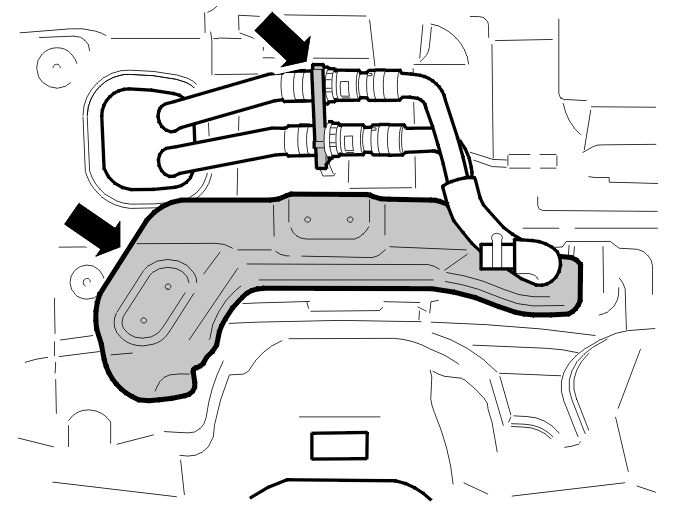

Fig 1: Identifying Heat Deflector Plate

GLL140031

Courtesy of VOLVO CARS CORPORATION

Install:

the heat deflector plate
the hoses
the 1 clip.
