Installing The Brake Pipes

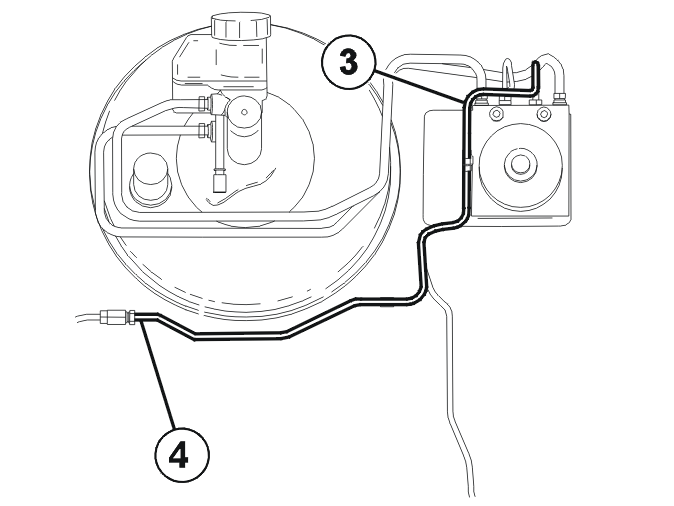

Fig 1: Brake Pipe

Courtesy of VOLVO CARS CORPORATION

Install:

• the brake pipe (3). Tighten. See TIGHTENING TORQUE
• the brake pipe (4). Tighten. See TIGHTENING TORQUE
• the brake pipe in the clips.

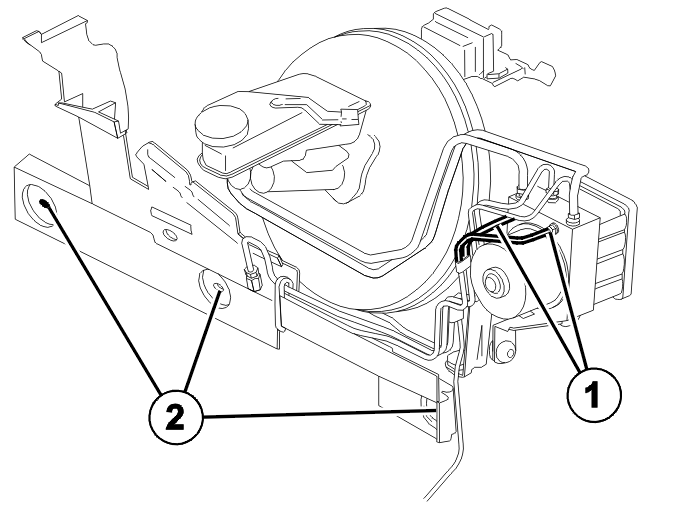

Fig 2: Brake Lines ABS Unit/Pipe Coupling Rear

Courtesy of VOLVO CARS CORPORATION

Install:

• the lower protective cover for the firewall
• the 3 nuts (2)
• the two brake pipes (1). See BRAKE LINES ABS UNIT/PIPE COUPLING REAR, REPLACING .
