Installing The Brake Hose
NOTE:
For tightening torques, see TIGHTENING TORQUE
.

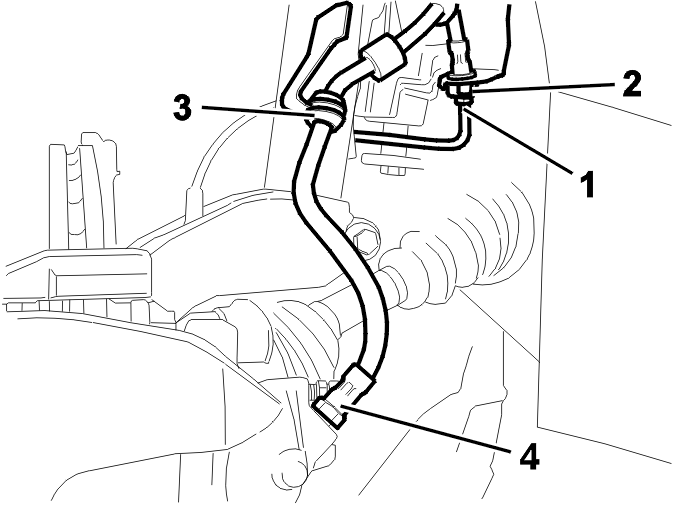

Install:
- the brake hose (4) to the caliper. Tighten. See TIGHTENING TORQUE
- the brake hose (3) in the mounting
- the retaining clip (2).
- brake pipe in the hose (1). Tighten. See TIGHTENING TORQUE .
NOTE:
Ensure that the brake hose is not twisted. If the brake hose is twisted, there is a risk of circuit failure.
