Pedal Box, Brake: Removal

Remove the following items:

• See STEERING COLUMN
• See ACCELERATOR PEDAL

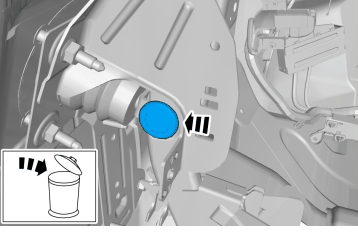

Fig 1: Locating Brake Pedal Pin

Courtesy of VOLVO CARS CORPORATION

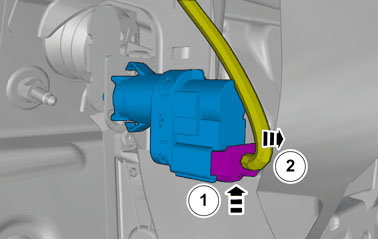

Fig 2: Identifying Brake Pedal Switch Connector

Courtesy of VOLVO CARS CORPORATION

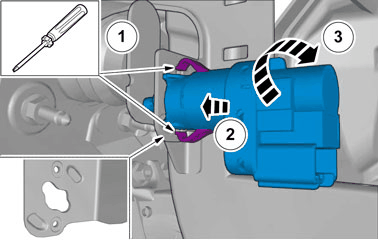

Fig 3: Identifying Brake Pedal Switch

Courtesy of VOLVO CARS CORPORATION

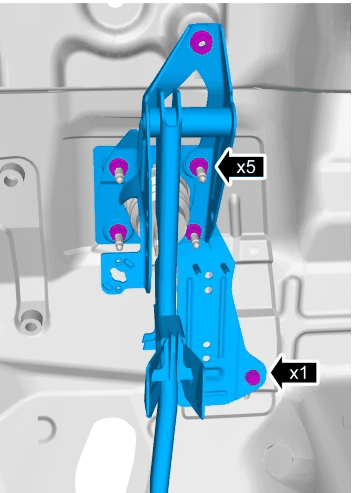

Fig 4: Identifying Brake Pedal Assembly Nuts

Courtesy of VOLVO CARS CORPORATION
