Removing The Bushing

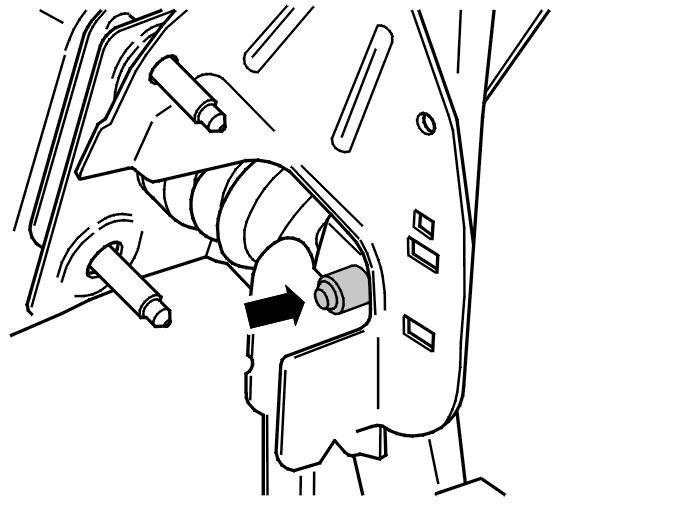

Fig 1: Identifying Brake Booster Push Rod
GLL140029Courtesy of VOLVO CARS CORPORATION

Break off the bushing together with the pin from the push rod.

NOTE: The pin cannot be separated entirely. It must be replaced with a new pin on installation.
