Applies To All Models

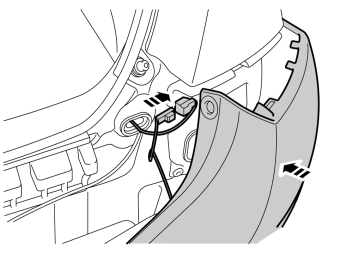

Fig 1: Connecting Parking Assistance Connector And License Plate Lighting Connector And Re-Installing Bumper Cover

Courtesy of VOLVO CARS CORPORATION

Raise the bumper cover to the car.
Connect the connectors for parking assistance and license plate lighting.
Reinstall the bumper cover with its screws.
Reinstall the stops for the tailgate.

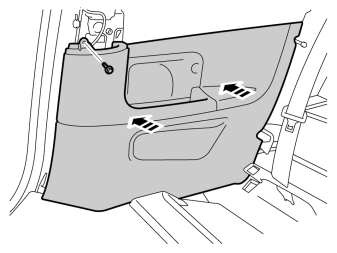

Fig 2: Identifying Panel Screw

Courtesy of VOLVO CARS CORPORATION

Reinstall in the cargo compartment:

side panel
clips for the cargo floor support
sill molding
sill trim panel
applicable spare wheel
jack and other parts in the cargo floor support
the floor hatch

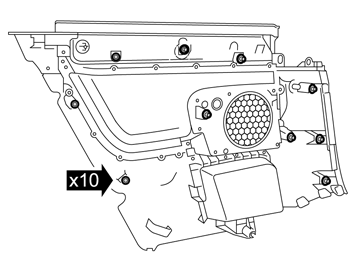

Fig 3: Locating Ten Panel Clips

Courtesy of VOLVO CARS CORPORATION

NOTE:

There are 10 clips on the reverse of the panel that must engage in the body. Take care when aligning so that the clips do not break. Broken clips must be replaced with new ones.

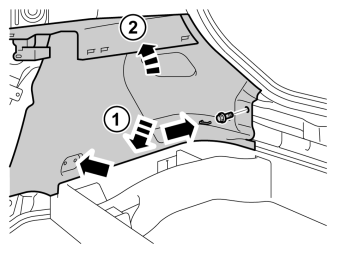

Fig 4: Identifying Panel Clips And Screws

Courtesy of VOLVO CARS CORPORATION

Reinstall the side panel by first aligning it on the sill at the front edge and then pressing it against the body side, ensure that all clips engage.
Tighten the panel using existing screws.

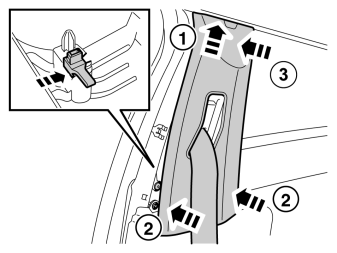

Fig 5: View Of B Pillar Panel Clips

Courtesy of VOLVO CARS CORPORATION

Reinstall:

the panel with the safety clip and sill molding.
backrest, tighten the screw to 15 Nm (11 lbf. ft) .
the armrest
cushion

Fig 6: Identifying VIDA (Volvo Scan Tool) To Program Software

Courtesy of VOLVO CARS CORPORATION

Download software (application) for the accessory's function using VIDA (Volvo scan tool).
