Parking Assistance, Front, Chassis Number 190000-: Notes
- Clean the sensors. Use: Isopropanol.
- Allow to dry.
- Carefully mat the surface down. Use: Glasspaper, grade P1000
- Clean the sensors again. Use: Isopropanol
- Allow to dry.
- Avoid contact with the cleaned surfaces.
CAUTION:
Protect the connections' contact surfaces against paint.

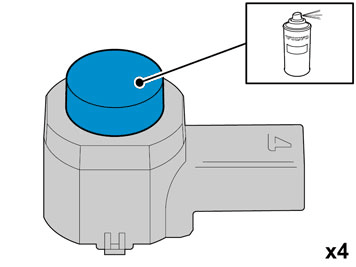

- Paint the sensors in the same color code as the vehicle.
- Use Volvo Touch-up paint. (Only use base coat.)
- Use: Volvo 2-K Varnish. P/N: 31335447
NOTE:
Also read the instructions on the spray can.
CAUTION:
The paint must have dried after the first application.
- Raise the car.

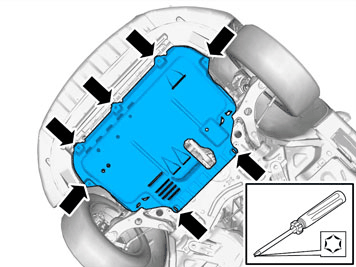

- Remove the screws and the engine splash guard.
